Vertical Carousel Parking for Compact Plots
6–16 cars per tower, sedan/SUV pallets, PLC control and comprehensive safety — engineered for villas, hotels, offices and tight urban sites. Free site visit & quotation across all Emirates.
What Is Rotary Parking?

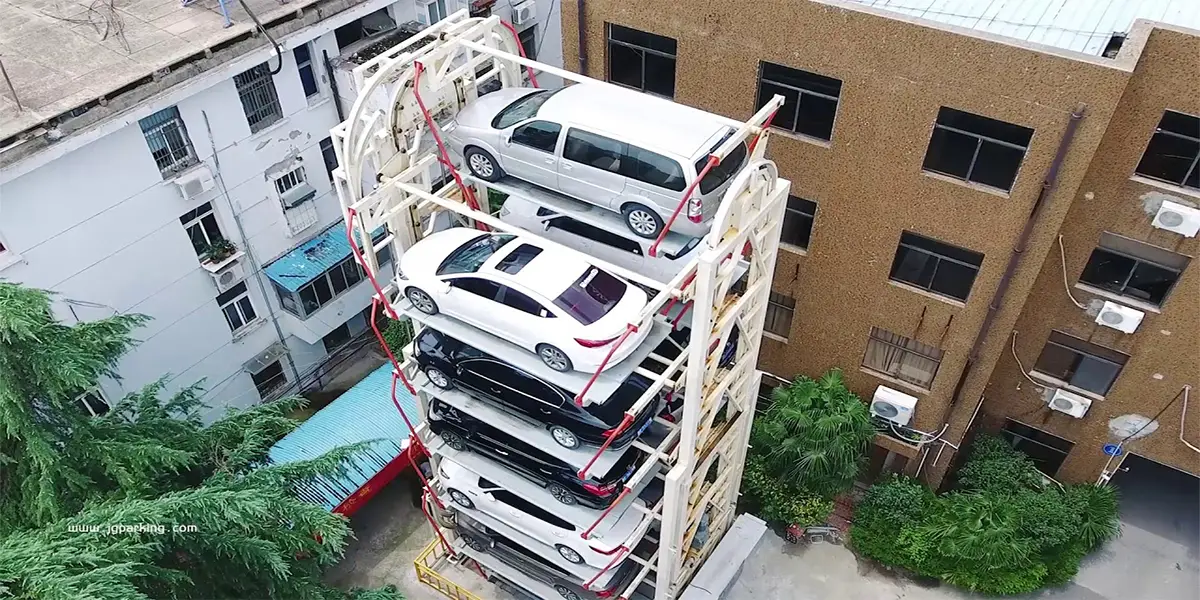

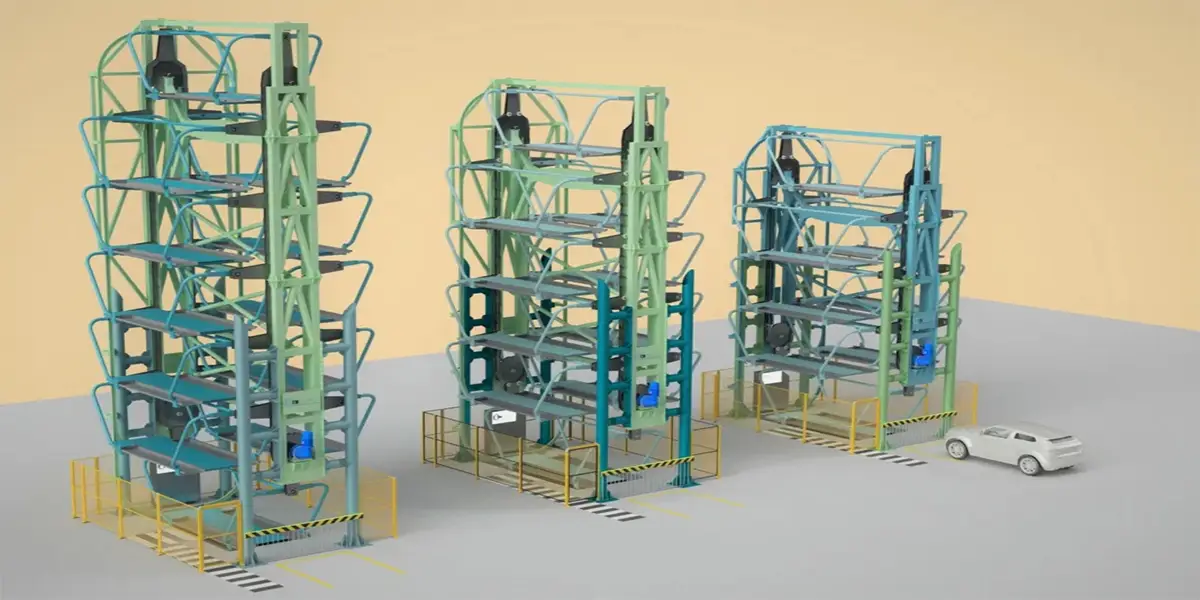

Rotary parking (vertical carousel) stacks vehicles on pallets that circulate to the ground level for entry/exit. It multiplies capacity on a small footprint, adds access control and improves safety with light curtains, interlocks and guided operation.
Key Characteristics
Big Capacity, Small Footprint
6–16 cars within a plot roughly similar to two parking bays.
PLC Control
PLC/HMI with soft start/stop, position sensors and diagnostics.
Access Integration
RFID/UHF tags, PIN keypads or ANPR camera-based entry.
Safety
Light curtains, safety gates, anti-fall devices, emergency stop.
Modular & Fast Install
Pre-engineered modules for retrofit or new-build deployment.
Common Uses
- Villas and private residences
- Hotels, offices and mixed-use developments
- Urban infill plots and retrofits
- Showrooms and valet operations
Technical Specifications
Capacity
6–16 cars per tower (expandable with multi-tower arrays).
Pallet Load
2000–2500 kg per pallet (model-dependent).
Vehicle Envelope
Sedan up to ~5.2 × 1.95 × 1.55 m; SUV variant up to ~2.0 m height.
Retrieval Time
~90–120 s typical to bring selected pallet to ground.
Control
PLC/HMI, position sensors, alarms; remote monitoring optional.
Power
3-phase 380/415/440 V, 50 Hz; standby & emergency modes.
Safety
Interlocks, light curtains, mechanical locks, E-stop, beacons.
Documentation
GA drawings, load data and test certificates at handover.
Detailed Specification Table
| System Type | Vertical rotary (carousel) parking tower |
|---|---|
| Capacity | 6, 8, 10, 12, 14, 16 cars per tower |
| Pallet Load | 2000–2500 kg per pallet |
| Vehicle Size (Sedan) | Up to ~5200 × 1950 × 1550 mm |
| Vehicle Size (SUV) | Up to ~5200 × 2100 × 2000 mm (SUV configuration) |
| Retrieval Time | ~90–120 s typical (position dependent) |
| Drive | Electric motor + reduction gear with chain/sprocket transmission |
| Control | PLC/HMI, RFID/PIN/ANPR interface, audible/visual alarms |
| Entry Safety | Light curtain, safety gate/door interlocks, wheel guides |
| Power Supply | 3-phase 380/415/440 V, 50 Hz; dedicated feeder with earthing |
| Environment | Indoor or outdoor with weather kit (IP-rated devices, drainage) |
| Finish | Powder-coated structure; galvanized components for outdoor use |
Final foundation loads, clearances and electrical ratings are confirmed after a site survey and approved GA drawings.
Options & Upgrades
Access Control
RFID/UHF tags, PIN keypads, ANPR cameras, intercoms.
Sedan/SUV Pallets
Choose pallet height/width for your vehicle mix.
Remote Monitoring
IoT telemetry, alerts and service dashboards.
Outdoor Package
IP-rated devices, anti-corrosion coatings, sun/rain guards.
Lighting & Signage
High-lux LEDs, guidance signs and floor markings.
Installation Process
Site Survey
Footprint, height clearances, driveway approach and utilities.
Design & Approval
GA drawings, foundation loads, access interface and safety layout.
Fabrication
Module build, pallet fabrication and FAT (factory tests).
Erection
Steel structure assembly, drive system and wiring.
Testing & Commissioning
Cycle/retrieval tests, safety checks and training.
Training
Operator guidance and maintenance briefing.
Comprehensive Services
Custom Design
Capacity, pallet type and access logic tailored to your site.
Installation
Foundation, structure, power and control integration.
Maintenance & AMC
Preventive plans, spares and 24/7 breakdown support.
Modernization
Controller, sensors and safety upgrades.
Our Service Process
- Consultation: Target capacity, vehicle mix, footprint, power and access methods.
- Design: GA drawings, foundation loads, electrical schedule and safety layout.
- Execution: Structure erection, wiring, testing and commissioning.
- Aftercare: Training, AMC, remote support and periodic audits.
Civil Works & Deliverables
By Client / Builder
- Reinforced concrete foundation per GA load diagram
- Dedicated power feeder, earthing, lighting and drainage
- Driveway approach, wheel guides and protective bollards
- Any local permits/approvals as applicable
By Gulf Tech Elevators
- GA drawings, load data and access/safety interface details
- System supply, installation, testing & commissioning
- Training, O&M manuals and handover certificates
- AMC and remote support options
Request Your Rotary Parking Quotation
Free site assessment in Dubai, Abu Dhabi, Sharjah, Ajman, RAK, UAQ, Fujairah and Al Ain. Quick lead times with local UAE support.
Quick Quote
Service Areas
We serve all UAE Emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Umm Al Quwain, and Fujairah.

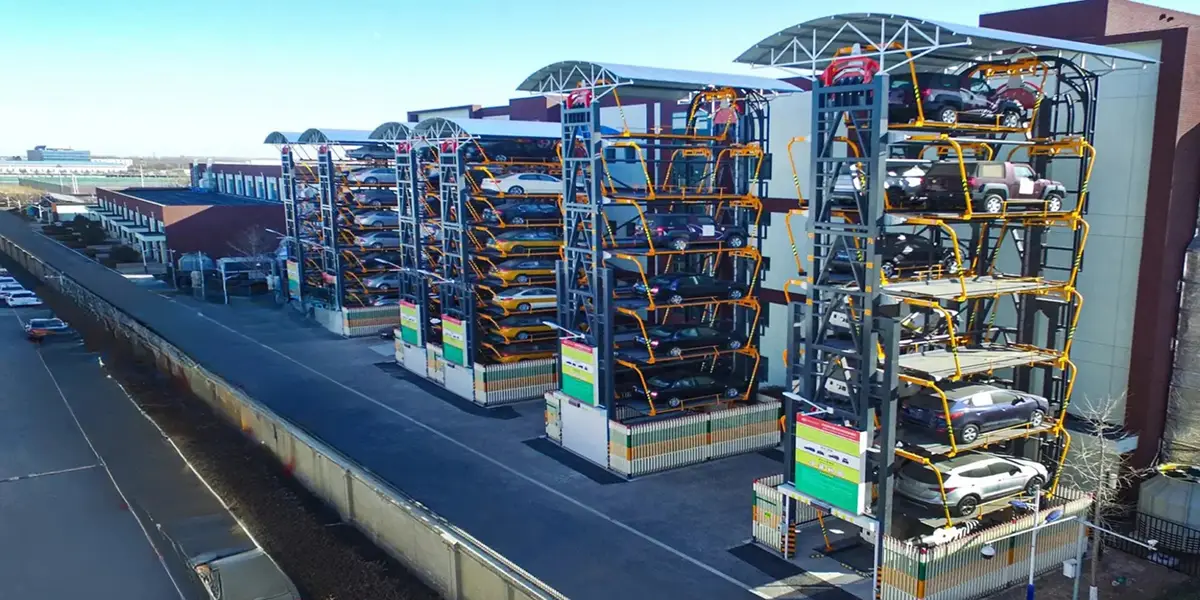

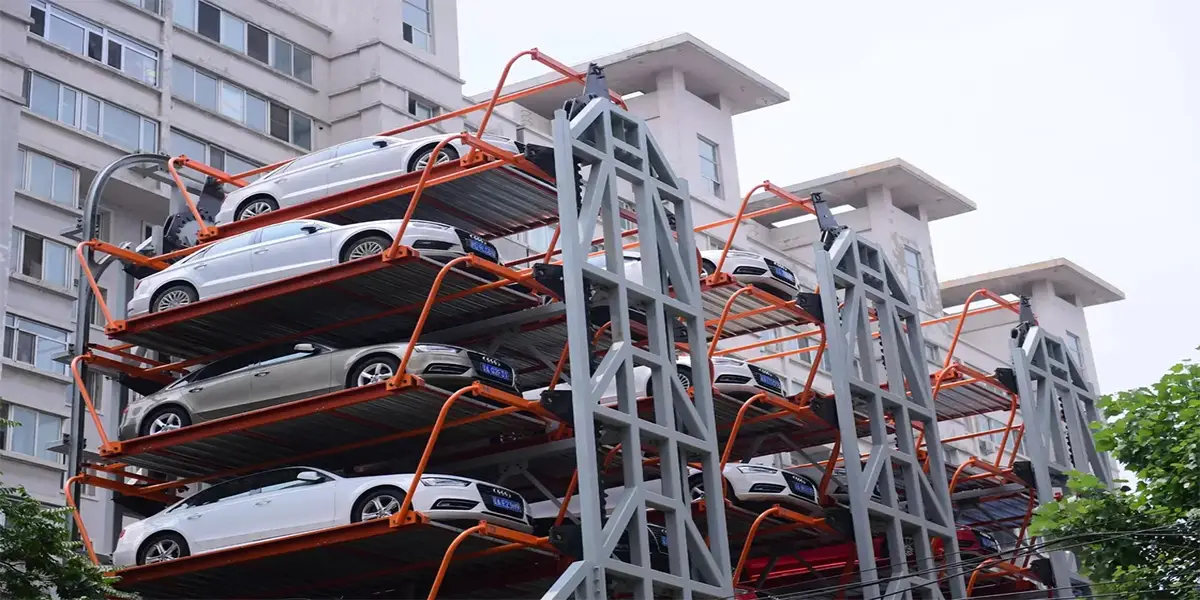

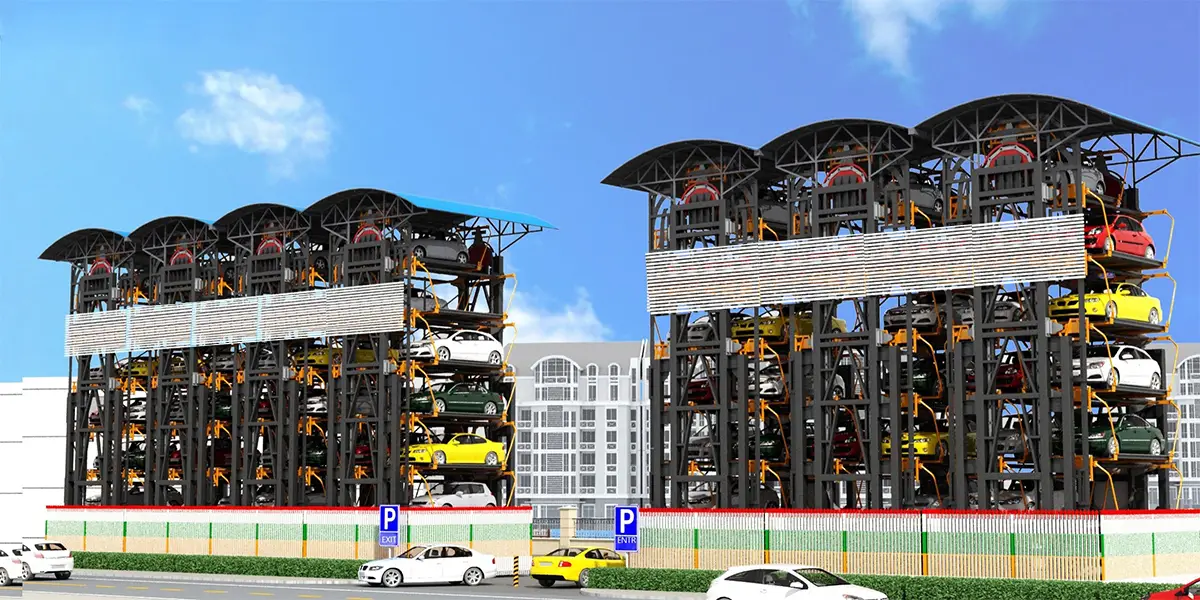

Project Gallery
Frequently Asked Questions
How fast can I retrieve my car?
Typical retrieval is ~90–120 seconds depending on the pallet’s current position.
Can SUVs be parked?
Yes—choose the SUV pallet configuration with increased height and load rating.
What happens during power failure?
Safe-stop logic and manual recovery procedures are provided; backup options available.
