Fast, Architectural Elevator Shafts in Steel & Glass
Pre-engineered shafts with precise EN 81 interfaces, glass/metal cladding, and rapid erection. Ideal for atriums, façades, villas and retrofits. Free site visit & quotation across all Emirates.
What Is a Steel Structure Elevator Shaft?
A prefabricated steel framing system that forms the elevator hoistway, designed with accurate tie positions, door apertures and sill supports to suit the lift model. It enables fast construction, clean architectural lines and flexible cladding such as laminated glass or metal panels for indoor or outdoor use.
Key Characteristics
Rapid Installation
Pre-engineered modules for quick erection and minimal disruption.
Precise Interfaces
Tie brackets, door openings and MEP sleeves per EN 81 interface needs.
Cladding Flexibility
Laminated/low-iron glass, ACP, perforated or solid metal panels.
Fire & Weather Packages
Options for fire-resistive lining and outdoor IP-rated details.
Durable Finishes
Hot-dip galvanizing and/or powder coating for corrosion control.
Common Uses

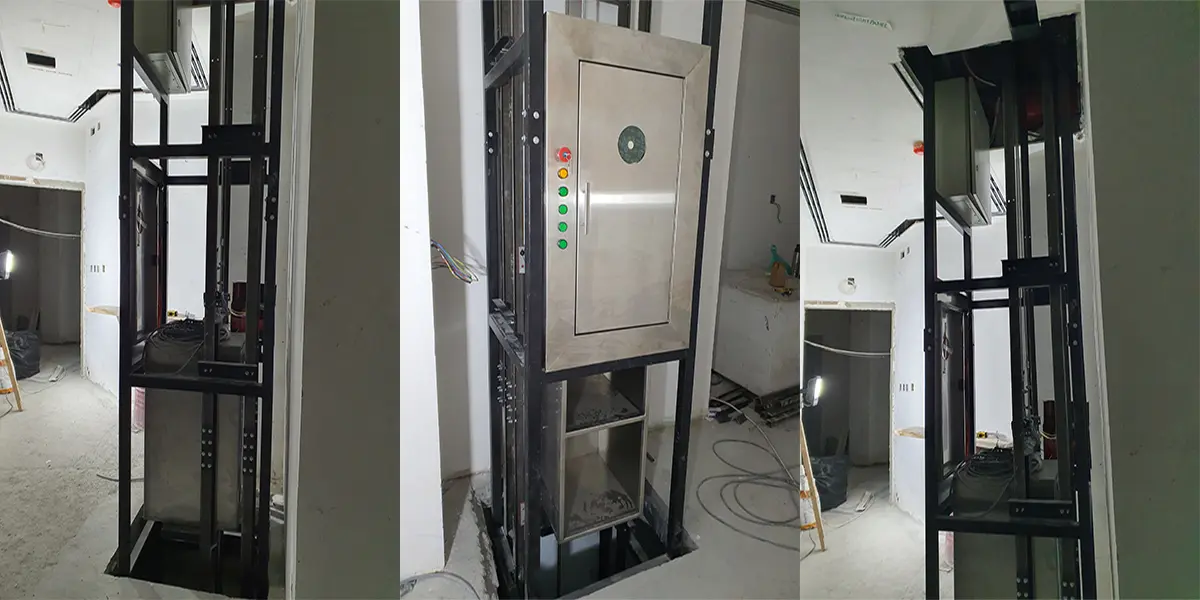

- Atriums and glass façades (architectural feature shafts)
- Villas and private residences (compact indoor/outdoor)
- Commercial retrofits where concrete shafts are impractical
- Industrial/service cores needing fast deployment
Technical Specifications
Height
Up to ~45 m (project-dependent).
Tie Spacing
Typical 3.0–4.5 m (as per structural design and building interface).
Materials
S275/S355 steel; SHS/RHS columns, channels and plates.
Finishes
Hot-dip galvanized, powder-coated; stainless trims optional.
Cladding
Laminated glass (low-iron optional), ACP, perforated/solid metal.

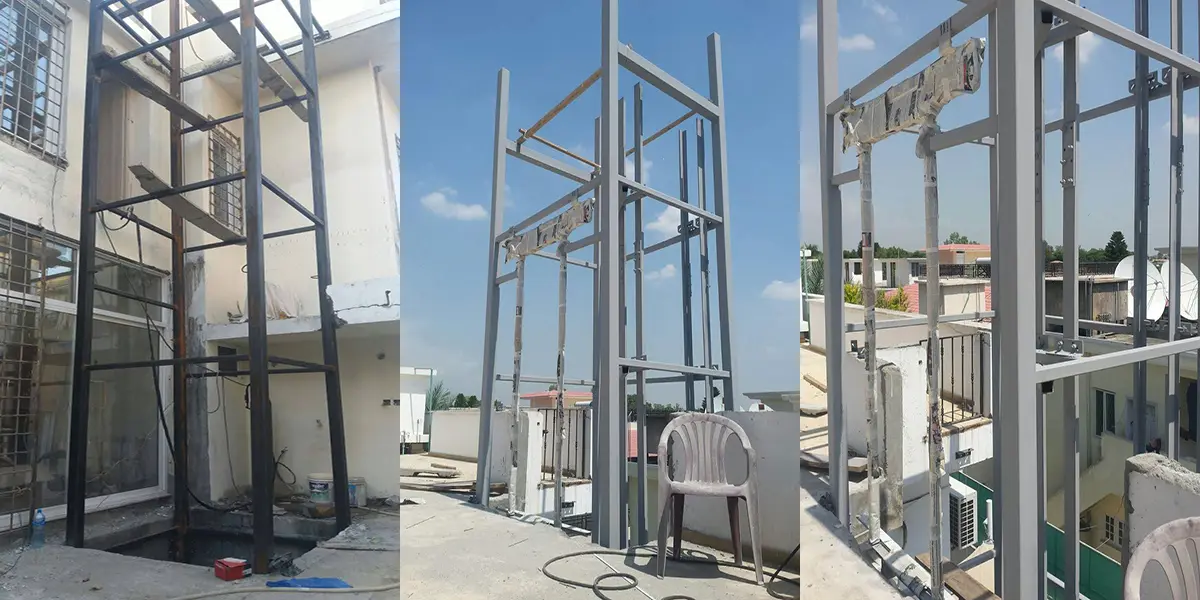

Outdoor Kit
IP-rated components, drainage details, sun/rain guards and seals.
Documentation
GA drawings, anchor/tie details and load data for approval.
Detailed Specification Table
| Structure Type | Bolted/welded steel frame (SHS/RHS/Channels + base/top beams) |
|---|---|
| Design Loads | As per lift vendor data + wind/seismic (project-specific) |
| Tie Connections | To slabs/beams at ~3.0–4.5 m or per structural calc; engineered brackets |
| Door Apertures | Cut-outs with sill supports; headers sized per door weight/span |
| Cladding | Laminated/low-iron glass; ACP; perforated or solid metal panels |
| Corrosion Protection | Hot-dip galvanizing (EN ISO 1461) + powder coat (project colours) |
| Fire Strategy | Board-lining or fire-resistive glazing options (authority requirements) |
| Drainage/Seals | Drip edges, sill pans, EPDM gaskets and ventilation as needed |
| Deliverables | GA drawings, anchor/tie details, load schedule and method statement |
| Interfaces | EN 81 tie positions, door dimensions, MEP sleeves and earthing lugs |
Final member sizes, tie locations and finishes are confirmed after the site survey, lift data receipt and approved GA drawings.
Options & Upgrades
Glass Package
Low-iron laminated glazing, frit/tint, stainless trims and concealed fixings.
Weather Kit
IP-rated devices, drainage pans, gaskets and anti-corrosion coatings.
Fire Strategy
Fire-resistive lining/glazing to meet local code (project-specific).
Architectural Detailing
Feature corners, LED reveals and custom portals at landings.
Lighting
Facade LED, motion lighting and maintenance task lights.
Installation Process
Site Survey
Footprint, tie zones, approach, crane/lifting and access planning.
Design & Approval
GA drawings, load schedule, door openings and cladding details.

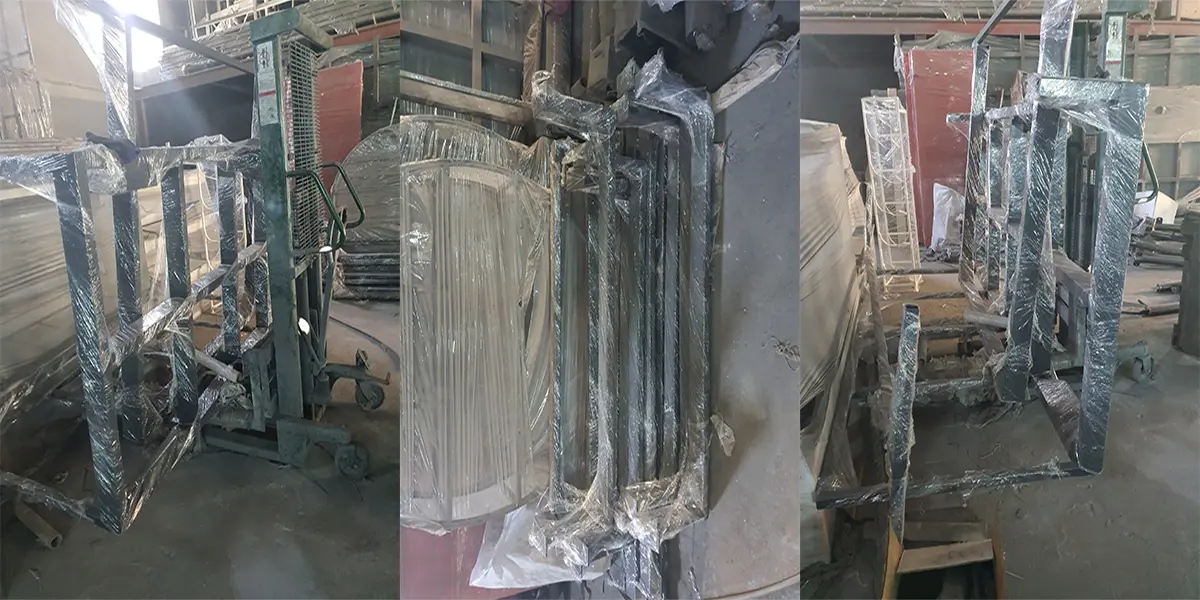

Fabrication
Shop drawings, cutting/welding, surface treatment and QA checks.

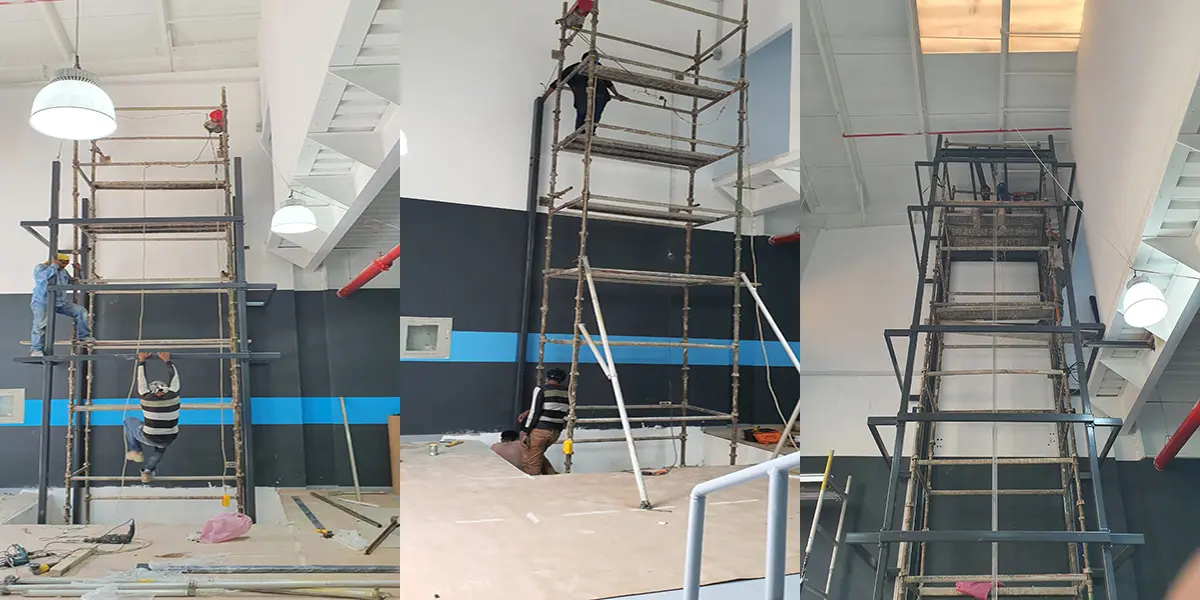

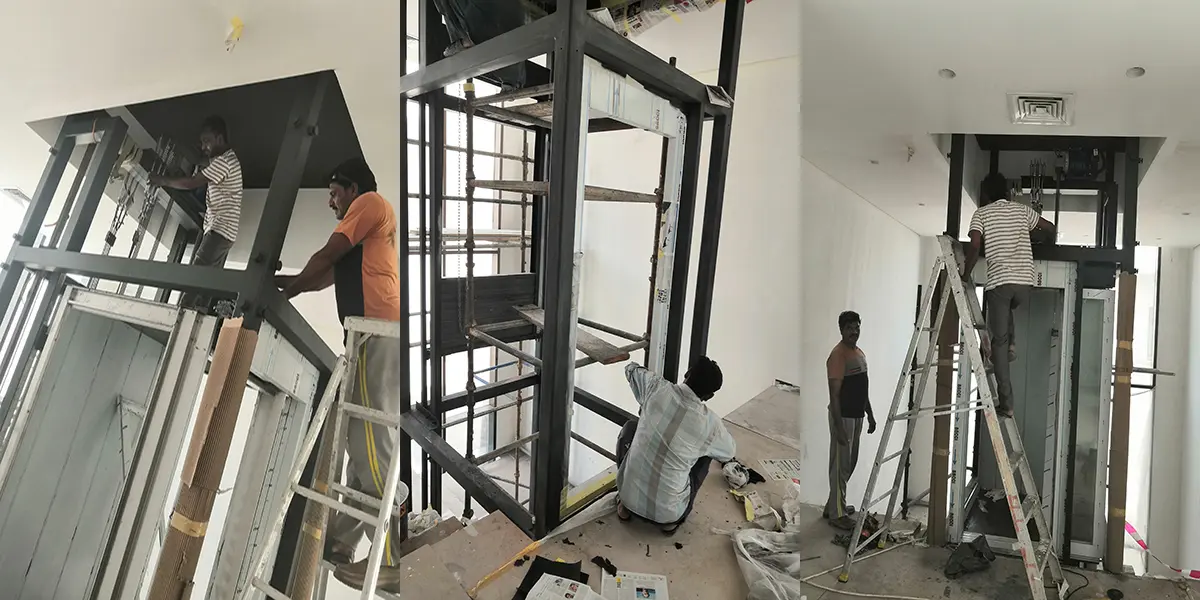

Erection
Base plates, column/beam assembly, temporary bracing and ties.
Cladding & Interfaces
Glass/metal panels, door portals, seals and MEP sleeves.
Handover
As-builts, load data, inspection certificates and maintenance briefing.
Comprehensive Services
Custom Design
Member sizing, tie strategy and cladding tailored to your project.
Installation
Structural assembly, cladding, sealing and interfaces with lift contractor.
Maintenance & AMC
Glazing checks, seal inspections and periodic structural audits.
Modernization
Upgrading older shafts with new cladding, doors and trims.
Our Service Process
- Consultation: Location (indoor/outdoor), height, cladding and access.
- Design: GA drawings, tie schedule, load data and finishes.
- Execution: Fabrication, erection, cladding and sealing.
- Aftercare: Training, AMC and periodic inspections.
Civil Works & Deliverables
By Client / Builder
- Foundations/base plates, anchorage and tie zones per GA
- Dedicated power, earthing and lighting to work areas
- Openings at landings and finishing around portals
- Permits/approvals and crane/access arrangements
By Gulf Tech Elevators
- GA drawings, load/tie schedule and architectural details
- Steel structure supply, installation and cladding
- Sealing, drainage details and weather/fire options
- O&M manuals, training and handover documentation
Request Your Steel Shaft Quotation
Free site assessment in Dubai, Abu Dhabi, Sharjah, Ajman, RAK, UAQ, Fujairah and Al Ain. Quick lead times with local UAE fabrication.
Quick Quote
Service Areas
We serve all UAE Emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Umm Al Quwain, and Fujairah.
Project Gallery
Frequently Asked Questions
How fast can a steel shaft be installed?
With pre-fabricated modules and access arranged, erection typically completes much faster than concrete, then cladding and sealing proceed.
Can it be fully glass?

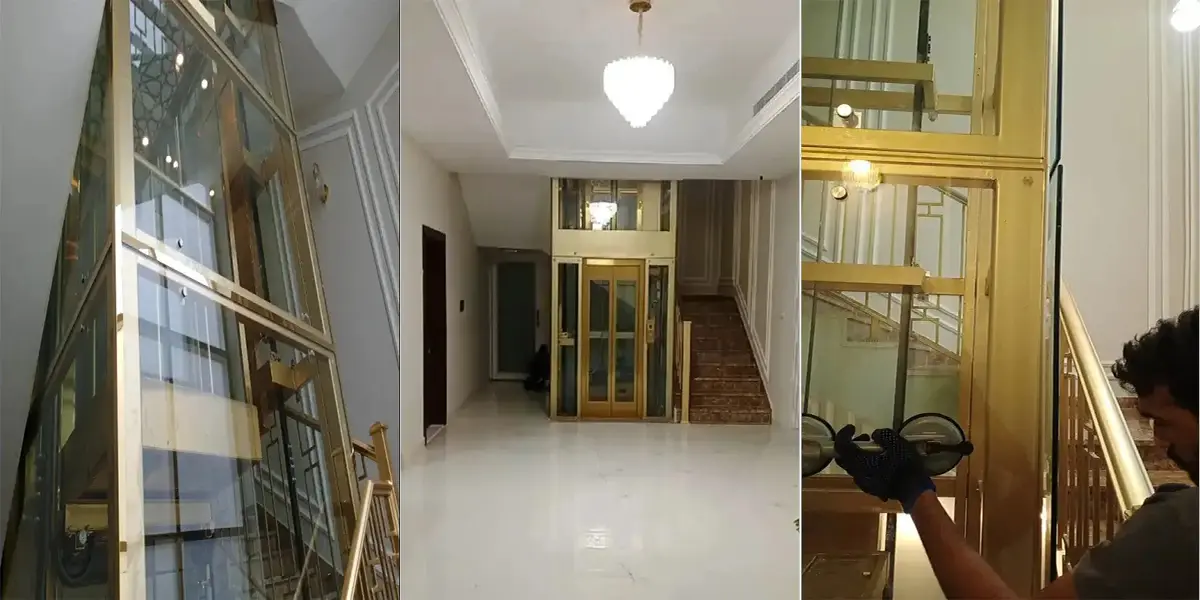

Yes—structural steel with laminated/low-iron glazing and stainless trims creates a panoramic appearance while keeping structure discreet.
What about maintenance?
Routine checks focus on seals, glazing fixings and protective coatings in addition to standard lift maintenance.
