Compact Accessibility Lifts with Minimal Civil Works
250–500 kg platform lifts with open or enclosed shafts, low pit/headroom and whisper-quiet operation—engineered in the UAE for homes and public access upgrades. Free site visit & quotation across all Emirates.
What Are Platform Lifts?
Platform lifts (VPL) provide step-free accessibility where conventional passenger lifts aren’t feasible. With low pit/headroom, open or enclosed platforms and efficient drives, they enable safe movement for wheelchair users, elderly residents and light goods across 2–6 stops.
Key Characteristics
Low Pit & Headroom
Typical pit 60–120 mm and headroom ~2350–2600 mm.
Flexible Drives
Screw-driven, hydraulic or MRL traction depending on travel and usage.
Door Options
Manual or automatic swing; centre-opening/telescopic on enclosed models.
Safety & Accessibility
Safety edges, light curtains, interlocks, braille/voice and handrails.

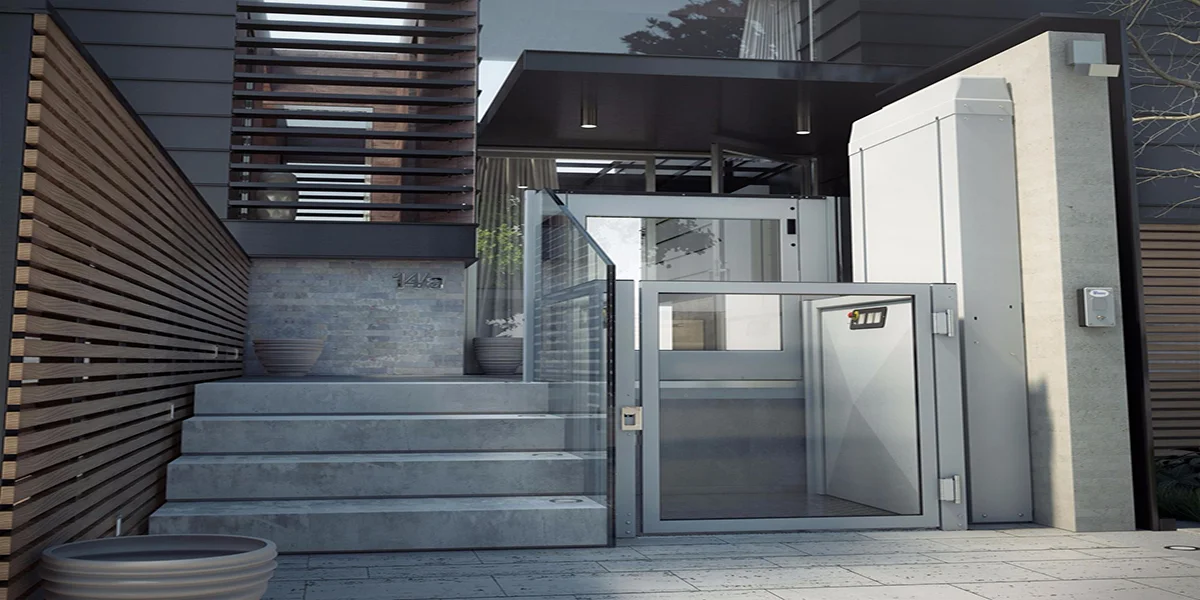

Indoor/Outdoor
Weather package with IP-rated devices and corrosion-resistant finishes.
Common Uses
- Villas and private residences
- Clinics, rehabilitation centres and schools
- Retail, cafés and public access retrofits
- Mosques and community facilities
Technical Specifications
Capacity
250–500 kg.
Platform Size
900 × 1400 mm to 1100 × 1600 mm.
Travel Height
Up to ~12 m (model dependent).
Speed
0.08–0.15 m/s.
Control
Hold-to-run (open platform) or automatic (enclosed cabin); VFD where applicable.
Power
Single-phase 230 V or 3-phase 380/415 V; ARD / manual lowering.
Doors
Manual/automatic swing; or automatic sliding for enclosed models.
Compliance
EN 81-41; option EN 81-70 accessibility features.
Detailed Specification Table
| Rated Load | 250, 300, 400, 500 kg |
|---|---|
| Platform (W × L) | 900–1100 mm × 1400–1600 mm |
| Door Opening | 800–1000 mm width; 2000–2100 mm height |
| Stops / Travel | 2–6 stops / up to ~12 m |
| Drive | Screw-driven / Hydraulic / MRL traction (enclosed) |
| Control Mode | Hold-to-run (open); automatic (enclosed) |
| Pit / Headroom | 60–120 mm pit; ~2350–2600 mm headroom |
| Power Supply | 1-phase 230 V or 3-phase 380/415 V |
| Environment | Indoor; outdoor with weather package |
| Standards | EN 81-41; option EN 81-70. Certificates at handover. |
Final platform size, pit and headroom are confirmed after a site survey and approved GA drawings.
Options & Upgrades
Access Control
Keys, RFID, or limited-use modes for managed access.
Enclosed Cabin
Automatic doors, full car walls and smoother automatic control.
Remote Monitoring
IoT telemetry, alerts and service dashboards.
Accessibility Pack
Handrails, braille/embossed buttons, voice prompts and mirrors.
Finishes & Lighting
Powder-coated structures, stainless trims and LED lighting.
Installation Process
Site Survey
Route, pit feasibility, headroom and doorway clearance checks.
Design & Approval
GA drawings, platform size, door swing/automation and power.
Fabrication & FAT
Factory build & tests; FAT report supplied.
Installation
Structure erection, drive setup, doors and controls fitout.
Testing & Commissioning
Safety checks, ride tuning and documentation.
Training
User training and maintenance briefing.
Comprehensive Elevator Services
Custom Design
Platform sizes, door types and control logic tailored to your site.
Installation
Civil, mechanical & electrical works with QA protocols.
Maintenance & AMC
Preventive plans, spares and 24/7 breakdown support.
Modernization
Upgrades for doors, controls, finishes and safety systems.
Our Service Process
- Consultation: Access needs, platform & door sizing, pit/headroom feasibility and finishes.
- Design: GA drawings, electrical load, safety logic and interfaces.
- Execution: Fabrication, installation and commissioning.
- Aftercare: Training, AMC, remote support and periodic audits.
Civil Works & Deliverables
By Client / Builder
- Pit and headroom as per GA (or ramp if pitless)
- Dedicated power feeder, earthing and lighting
- Doorway clearances and wall openings as required
- Weather protection for outdoor units (if applicable)
By Gulf Tech Elevators
- GA drawings, structural and door interface details
- Lift supply, installation, testing & commissioning
- Safety features (light curtains, interlocks, signage)
- O&M manuals, training and handover certificates
Request Your Platform Lift Quotation
Free site assessment in Dubai, Abu Dhabi, Sharjah, Ajman, RAK, UAQ, Fujairah and Al Ain. Quick lead times with local UAE manufacturing.
Quick Quote
Service Areas
We serve all UAE Emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Umm Al Quwain, and Fujairah.

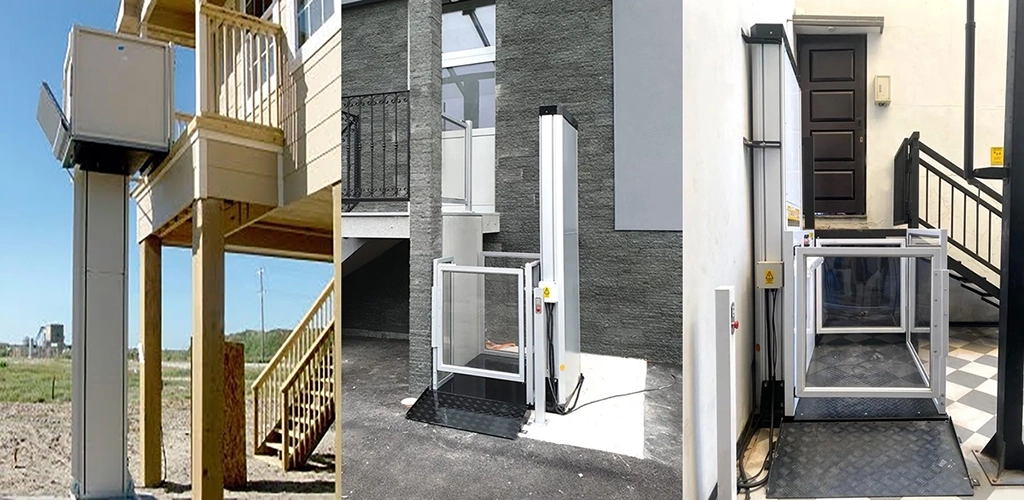

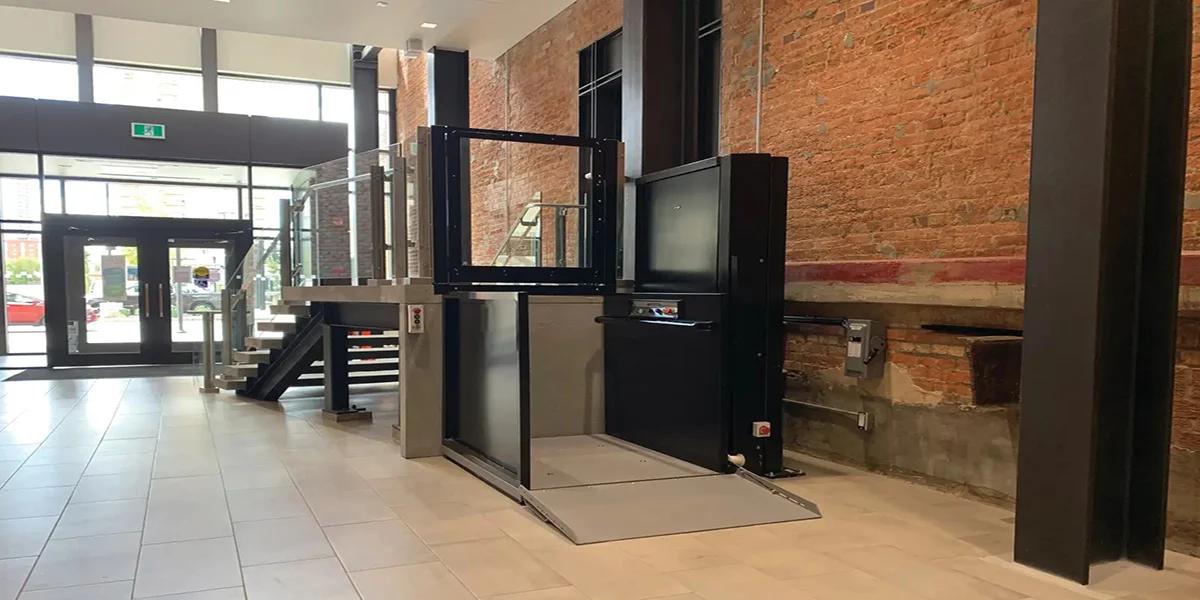

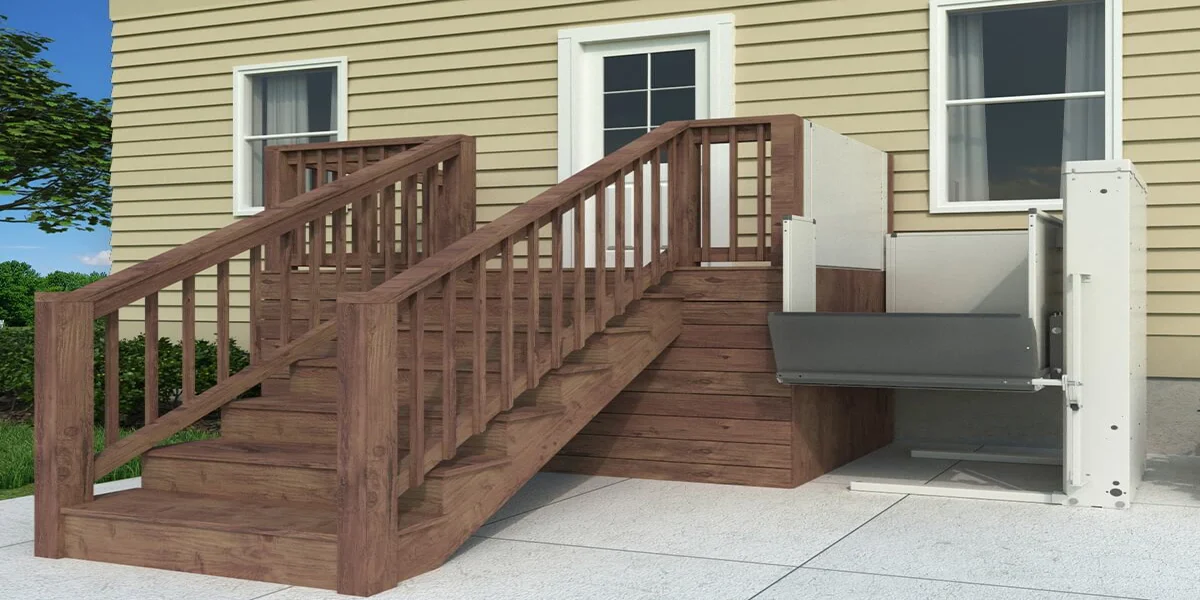

Project Gallery
Frequently Asked Questions
How long is installation?
After fabrication and site readiness, installation and commissioning typically take 1–3 weeks—timeline varies with pit, headroom and door configuration.
Is a pit required?
A shallow pit (60–120 mm) is preferred; a small ramp is possible for pitless installs where feasible.
Can you retrofit in existing buildings?
Yes—self-supporting structures with minimal civil works are available for retrofits.
