Architectural Glass Lifts with Silent Gearless Traction
Low-iron laminated glazing, meticulous stainless framing and EN 81 compliance—engineered in the UAE for malls, hotels and luxury residences. Free site visit & quotation across all Emirates.
What Are Panoramic Elevators?
Panoramic elevators are glass-walled lifts that provide a 360° visual experience while moving passengers through the building. Using low-iron laminated glazing and refined framing systems, these lifts enhance retail atriums, hotel lobbies and villas by combining architectural transparency with smooth, silent performance.
Key Characteristics
High-Transparency Glass
Low-iron laminated safety glass with UV-stable interlayers and polished edges.
MRL Gearless Traction
Quiet, energy-efficient drive with precise leveling and VFD control.
Engineered Structure
Freestanding steel/glass shafts or atrium-mounted car enclosures with engineered ties.
Safety & Accessibility
EN 81-20/50 compliance; EN 81-70 options for handrails, signals and door widths.
Comfort & Climate
Tint or solar films, ventilation fans, anti-condensation details and acoustic gaskets.
Common Uses

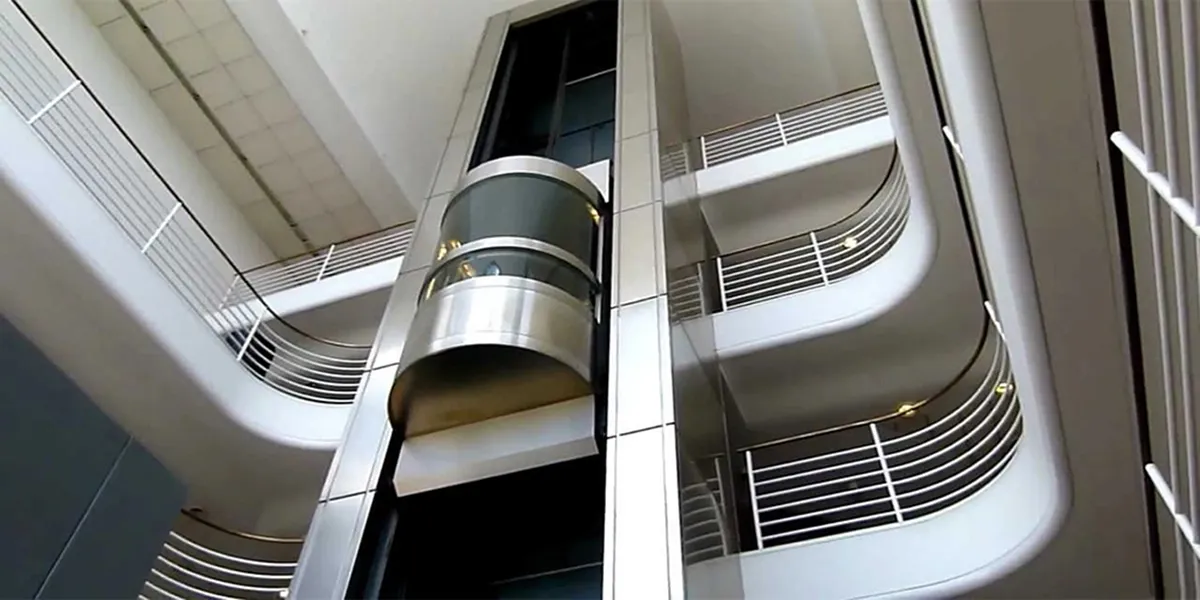

- Malls, hotels and corporate atriums
- Villas and luxury residences (panoramic shafts)
- Showrooms, galleries and waterfront properties

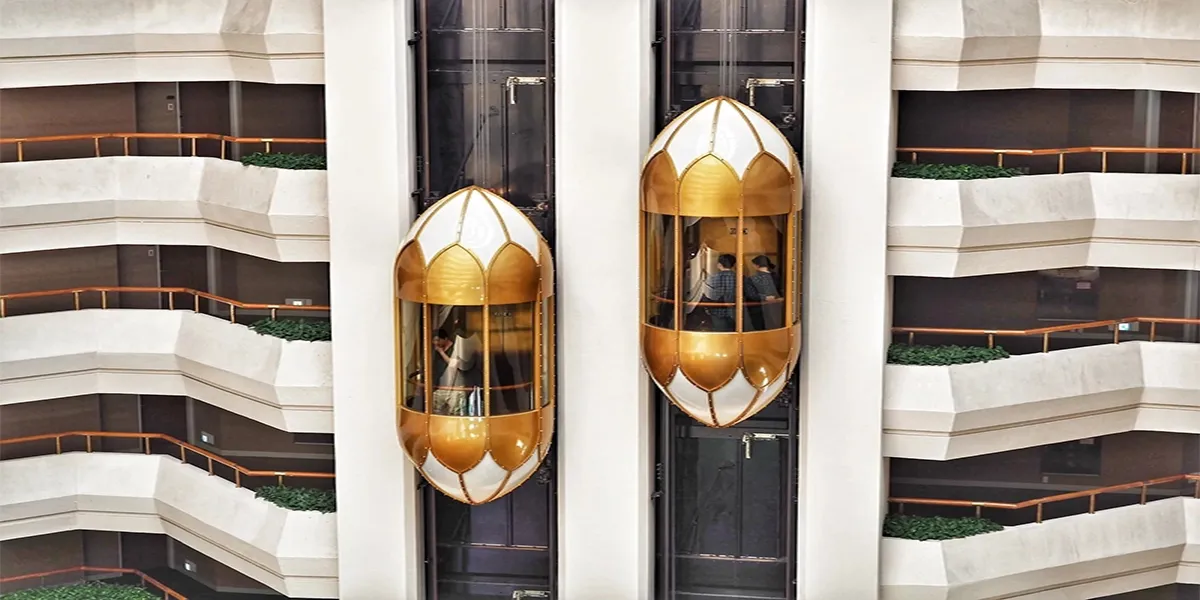

- Observation decks and mixed-use lobbies
Technical Specifications
Load Capacity
320–1000 kg (higher on request).
Cabin Sizes
From 1.1 × 1.4 m; popular sizes: 1.1 × 1.4 m, 1.4 × 1.4 m, 1.1 × 1.6 m.
Travel Height
Up to ~45 m (multi-stop), site dependent.
Speed
0.50–1.60 m/s (traffic/comfort tuned).
Control
PLC/microprocessor with VFD; optional destination control and remote monitoring.
Power
3-phase 380/415/440 V, 50 Hz; ARD battery pack for rescue.
Doors
Automatic centre-opening or telescopic; glass/SS panels with slim frames.
Glazing
Low-iron laminated safety glass with optional tint/solar film and ceramic frit.
Compliance
EN 81-20/50; option EN 81-70 accessibility.
Detailed Specification Table
| Rated Load | 320, 450, 630, 800, 1000 kg |
|---|---|

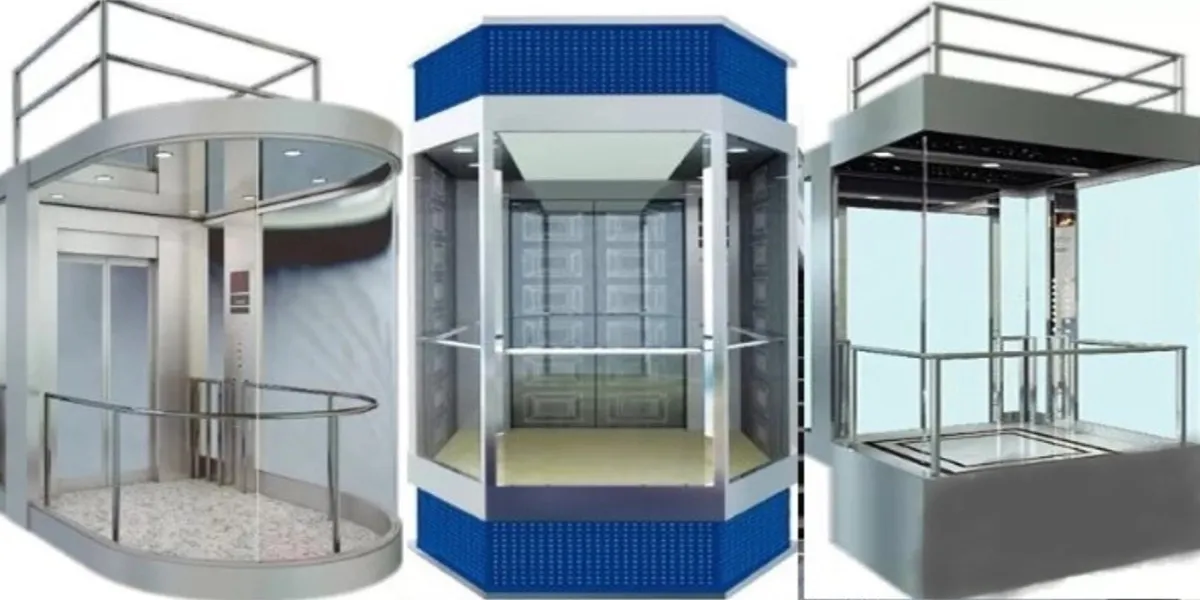

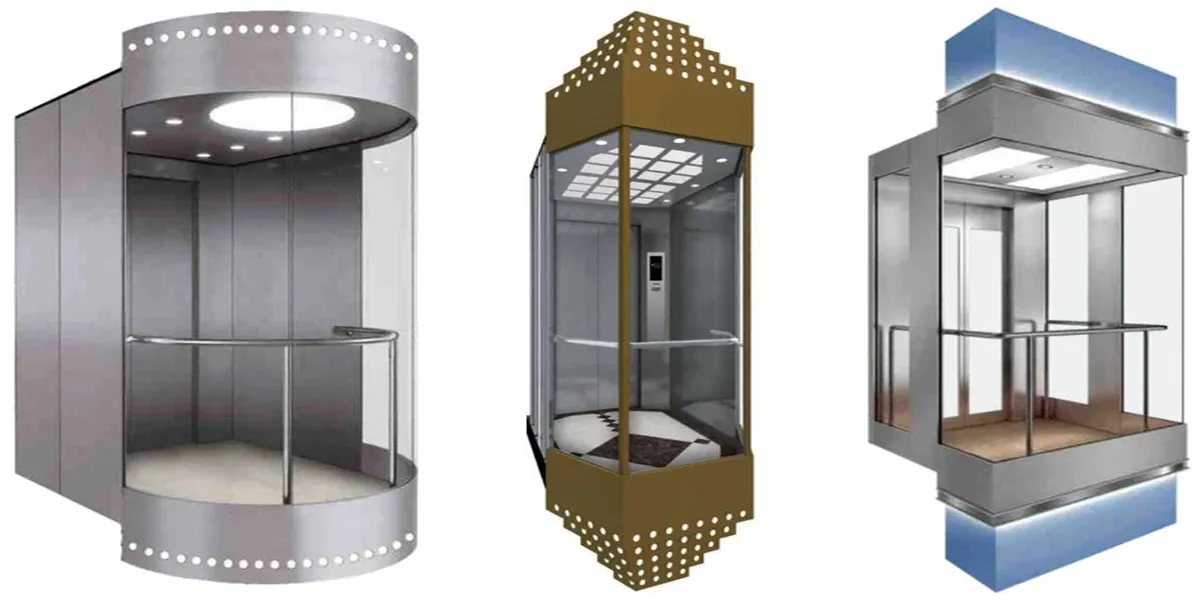

| Cabin Shapes | Rectangular, semi-circular, polygonal; custom panoramic designs |
| Door Opening | 700–1100 mm (automatic); glass or stainless leaves |
| Stops / Travel | 2–16 stops / up to ~45 m |
| Drive | MRL gearless/geared traction with VFD |
| Control | PLC/microprocessor; optional destination control and remote diagnostics |
| Shaft Type | Freestanding steel/glass shaft; atrium-mounted with ties; or concrete |
| Glass | Low-iron laminated (tempered/laminated), UV-stable interlayer, polished edges |
| Comfort | Ventilation fans, acoustic gaskets and anti-condensation details |
| Finishes | SS 304/316, brushed/mirror; powder-coated frames; designer COP/LOP |
| Power Supply | 3-phase 380/415/440 V, 50 Hz; dedicated feeder with earthing |
| Environment | Indoor; outdoor with weather package (IP-rated devices, drainage) |
| Standards | EN 81-20/50; option EN 81-70. Test certificates provided. |
Final dimensions, tie locations and electrical ratings are confirmed after a site survey and approved GA drawings.
Options & Upgrades
Panoramic Shaft
Freestanding glass shaft with stainless or aluminium framing.
Solar/Tint Package
IR-reducing films, frit patterns and sunshades for comfort.
Remote Monitoring
IoT telemetry, alerts and service dashboards.
Accessibility Pack
EN 81-70 features: braille buttons, handrails, announcements.
Lighting & Finishes
Mood lighting, colour-changing LEDs and premium cabin materials.
Installation Process
Site Survey
Atrium/facade review, tie-back points and sunlight/heat analysis.
Design & Approval
GA drawings, glazing specs, door layouts, finishes and anchors.
Fabrication & FAT
Factory build and tests; FAT report supplied.
Erection & Glazing
Steel shaft erection, glass installation, ties and equipment.
Testing & Commissioning
Ride tuning, safety checks, documentation and handover.
Training
Operator training and maintenance briefing.
Comprehensive Elevator Services
Custom Design
Glass shapes, frames, doors and control logic tailored to your space.
Installation
Structural, mechanical & electrical installation with QA protocols.
Maintenance & AMC
Preventive plans, spares and 24/7 breakdown support.
Modernization
Upgrade older lifts with glass cars, doors and controls.
Our Service Process
- Consultation: Aesthetics, visibility, climate control and budget.
- Design: GA drawings, glazing details, door layouts and MEP interfaces.
- Execution: Fabrication, erection, installation and commissioning.
- Aftercare: Training, AMC, remote support and audits.
Civil Works & Deliverables
By Client / Builder
- Foundation/tie zones, pit & headroom as per GA drawing
- Dedicated power feeder, earthing and lighting
- Atrium openings, finishes and glass protection during works
- Provision for drainage/sun-control (if outdoor/semi-outdoor)
By Gulf Tech Elevators
- GA drawings, glazing/anchor details and structural inputs
- Steel/glass shaft (if selected) and elevator supply
- Installation, testing and commissioning
- O&M manuals, training and handover certificates
Request Your Panoramic Elevator Quotation
Free site assessment in Dubai, Abu Dhabi, Sharjah, Ajman, RAK, UAQ, Fujairah and Al Ain. Quick lead times with local UAE manufacturing.
Quick Quote
Service Areas
We serve all UAE Emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Umm Al Quwain, and Fujairah.
Project Gallery
Frequently Asked Questions
How long is installation?
After fabrication and site readiness, installation and commissioning typically take a few weeks—timeline varies with shaft and glass scope.
Do you handle glass engineering?
Yes—we provide glazing specifications, structural tie details and coordination with the façade team.
Is maintenance different from standard lifts?
Service includes glazing checks, seal inspections and standard lift maintenance with AMC plans.
