Rugged Lifts for Factories, Warehouses & Logistics
500–5000 kg standard (up to 10 t), durable cabins, wide door options and precise traction control—engineered in the UAE for safe goods movement. Free site visit & quotation across all Emirates.
What Are Industrial Lifts?
Industrial lifts move heavy goods, pallets and trolleys where ramps or conveyors aren’t viable. They feature reinforced cabins, chequer-plate floors, high-torque drives and wide door systems to enable safe, efficient loading with precise leveling in demanding environments.
Key Characteristics
Rugged Cabin & Floor
Steel chequer-plate flooring, kick-plates, impact bumpers and tie-off points.
Traction or Hydraulic
High starting torque with smooth VFD control and accurate landing level.
Wide Door Options
Vertical bi-parting, centre-opening/telescopic or manual swing/collapsible gates.
Safe Loading
Overload weighing, wheel stops, roll-off protection and full-height light curtains.
Industrial Environments
IP-rated devices, ventilation and corrosion-resistant finishes for harsh sites.
Common Uses
- Warehouses, fulfillment centers and logistics hubs
- Factories, workshops and production lines
- Retail back-of-house, hotels and service cores
- Hospitals and facilities (goods and trolleys)
Technical Specifications
Capacity
500–5000 kg (10,000 kg on request).
Platform Size
From 1.5 × 2.0 m; custom up to ~2.8 × 3.5 m.
Travel Height
Up to ~40 m (project-dependent).
Speed
0.15–0.50 m/s (safety/comfort tuned).
Control
PLC/microprocessor with VFD; landing call/priority logic; remote monitoring optional.
Power
3-phase 380/415/440 V, 50 Hz; ARD emergency rescue pack.
Doors
Vertical bi-parting or horizontal automatic doors; manual swing/collapsible for utility.
Safety
Overload weighing, roll-off protection, light curtain, audible prompts, traffic lights.
Compliance
EN 81-20/50. Test certificates provided.
Detailed Specification Table
| Rated Load | 500, 1000, 1500, 2000, 3000, 5000 kg (10,000 kg on request) |
|---|---|
| Platform (W × L) | 1500–2800 mm × 2000–3500 mm (custom on request) |
| Door Opening | 1500–3000 mm width; 2000–2400 mm height |
| Stops / Travel | 2–12 stops / up to ~40 m |
| Drive | MRL traction (gearless/geared) or hydraulic |
| Control | PLC with VFD; traffic lights & audible guidance; remote diagnostics optional |
| Flooring | Steel chequer-plate / heavy-duty epoxy; kick-plates and bumpers |
| Loading | Flush threshold, wheel stops, roll-off protection |
| Environment | Indoor; outdoor with weather package (IP-rated devices, drainage) |
| Power Supply | 3-phase 380/415/440 V, 50 Hz; dedicated feeder with earthing |
| Standards | EN 81-20/50. Certificates at handover. |
Final platform size, approach clearances and electrical ratings are confirmed after site survey and approved GA drawings.
Options & Upgrades
Access Control
Key/card control, interlocks and restricted operation modes.
Dual-Side or Pass-Through
Front & rear doors for straight-through pallet flow.
Remote Monitoring
IoT telemetry, alerts and service dashboards.
Heavy-Duty Package
Reinforced cabin panels, rail brackets and impact protection.
Lighting & Signage
High-lux LED, warning beacons and floor markings.
Installation Process
Site Survey
Approach path, pallet sizes, turning radius and structural checks.
Design & Approval
GA drawings, platform sizing, door selection and MEP interfaces.
Fabrication & FAT
Factory build & tests; FAT report supplied.
Erection
Guide rail alignment, machine room/MRL setup and door installation.
Testing & Commissioning
Load tests, safety checks, ride tuning and documentation.
Training
Operator training and maintenance briefing.
Comprehensive Elevator Services
Custom Design
Platform sizes, door types and control logic tailored to your operations.
Installation
Structural, mechanical & electrical works with QA protocols.
Maintenance & AMC
Preventive plans, spares and 24/7 breakdown support.
Modernization
Upgrades for doors, controls, cabins and safety systems.
Our Service Process
- Consultation: Goods types, pallet sizes, approach path, platform and door sizing.
- Design: GA drawings, electrical load, safety logic and signage.
- Execution: Fabrication, erection, installation and commissioning.
- Aftercare: Training, AMC, remote support and periodic audits.
Civil Works & Deliverables
By Client / Builder
- Approach/turning clearances and pit/headroom per GA
- Dedicated power feeder, earthing and lighting
- Fire/life-safety requirements and ventilation as applicable
- Drainage provision for outdoor/semicovered locations
By Gulf Tech Elevators
- GA drawings, platform layout and door interface details
- Elevator supply (traction/hydraulic), installation and T&C
- Traffic light interface, safety logic and signage
- O&M manuals, training and handover certificates
Request Your Industrial Lift Quotation
Free site assessment in Dubai, Abu Dhabi, Sharjah, Ajman, RAK, UAQ, Fujairah and Al Ain. Quick lead times with local UAE manufacturing.
Quick Quote
Service Areas
We serve all UAE Emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Umm Al Quwain, and Fujairah.

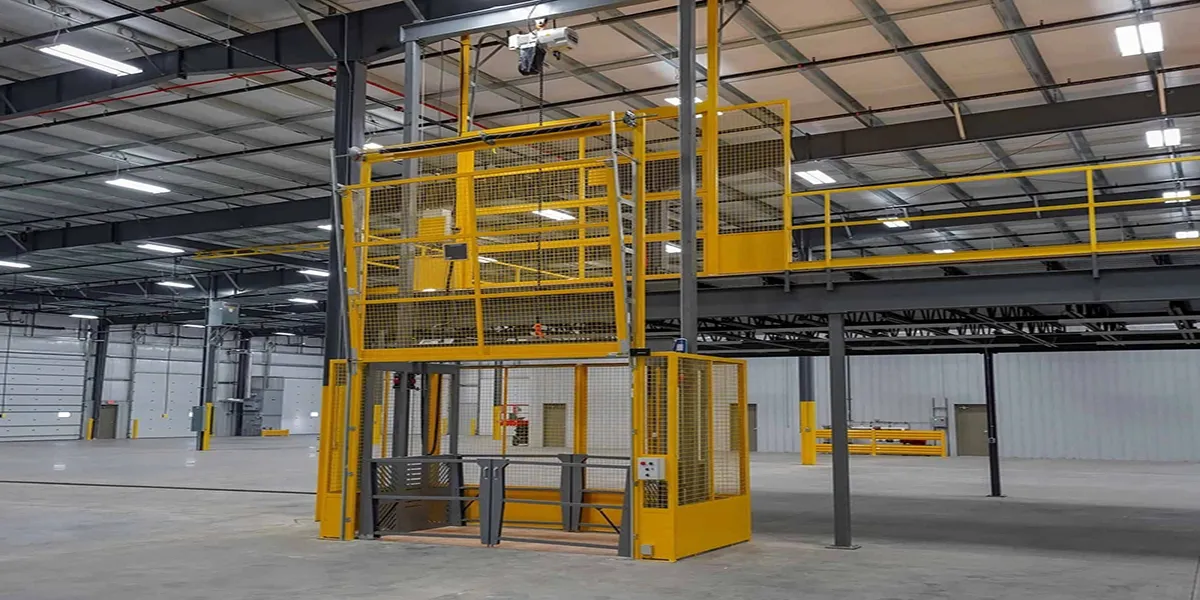

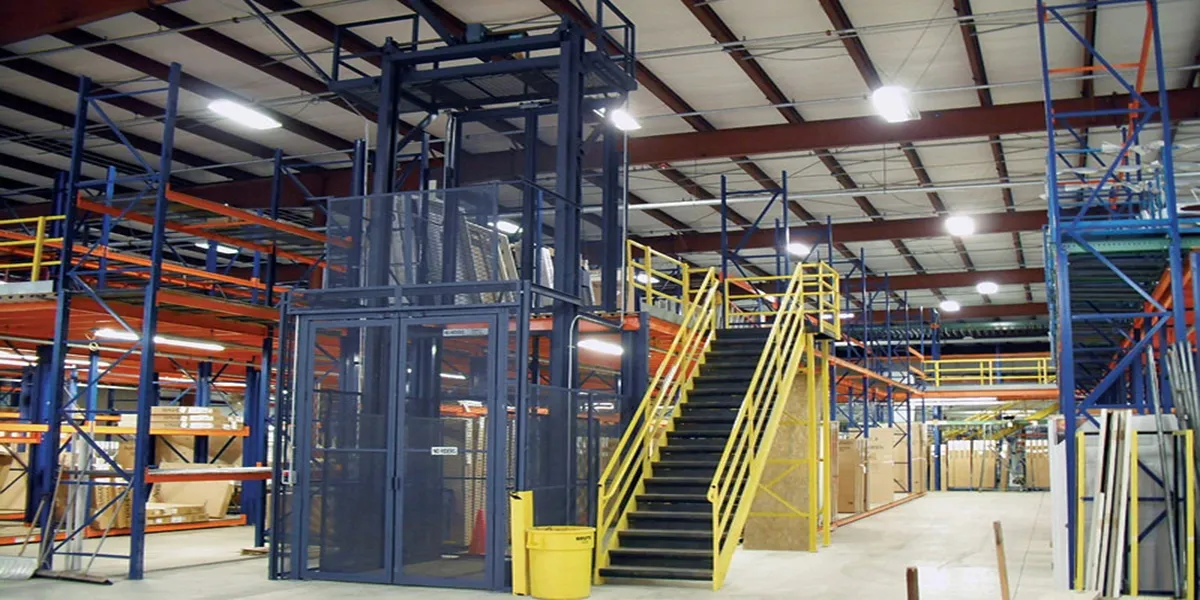

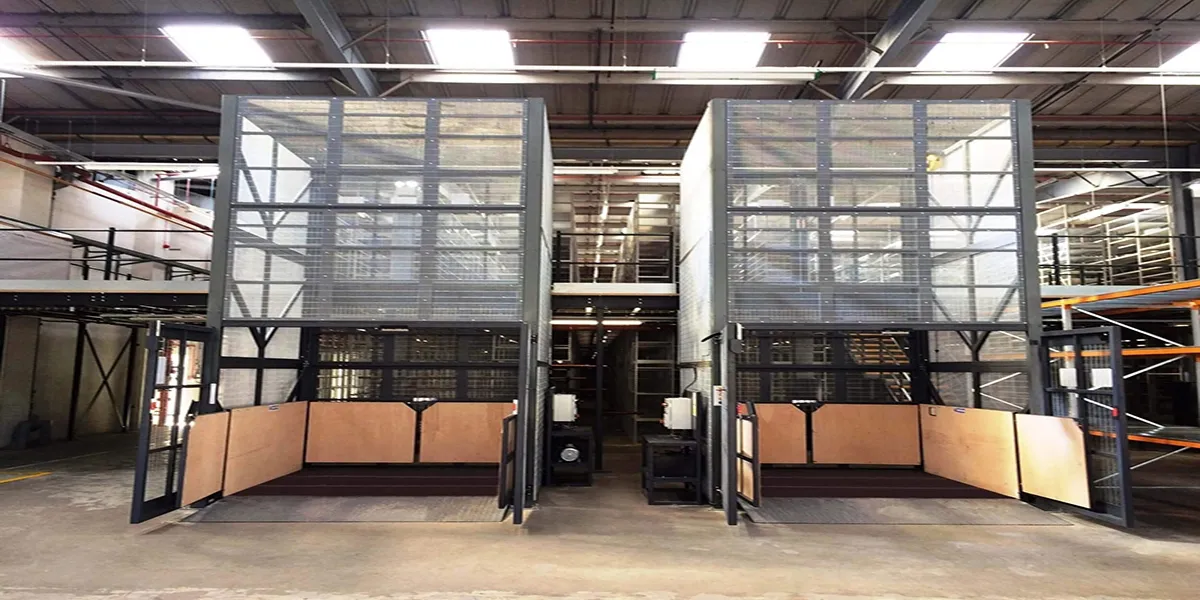

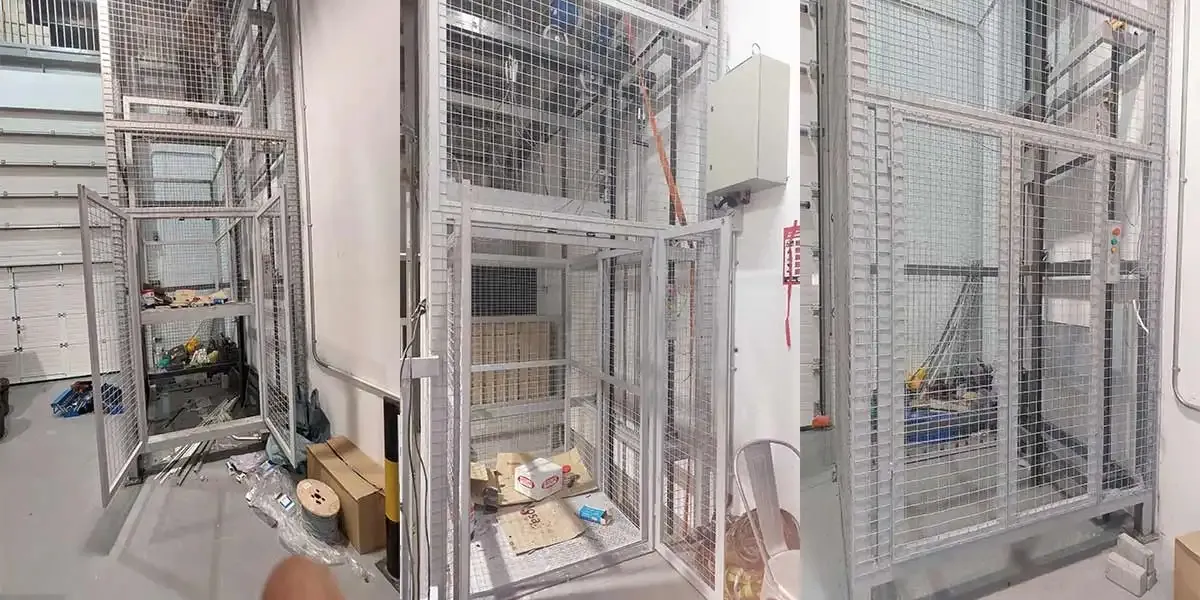

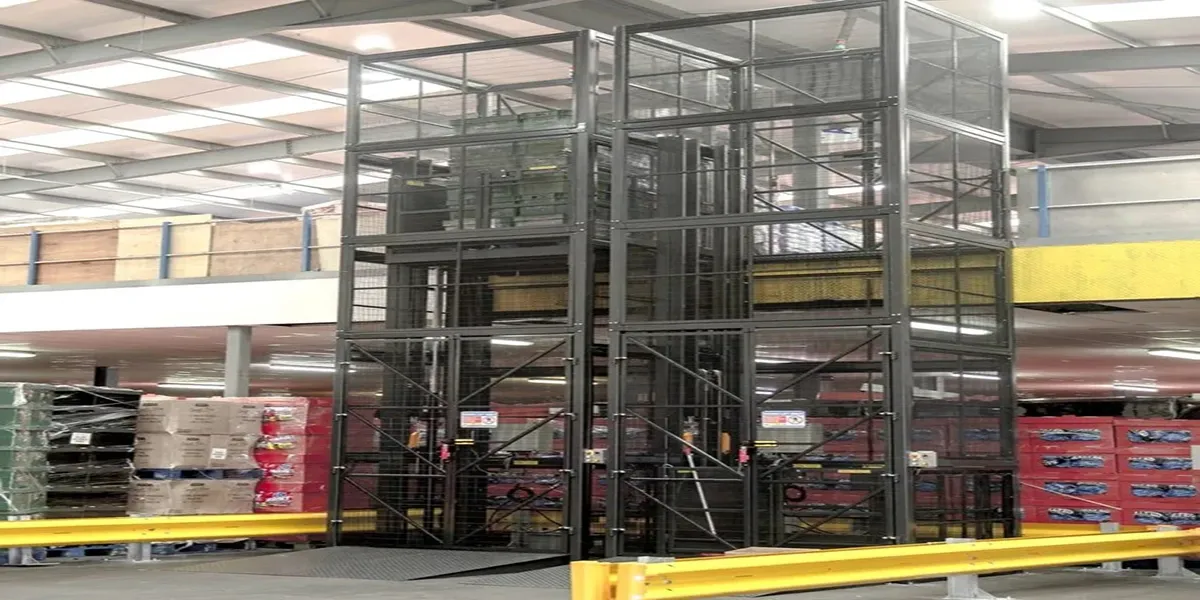

Project Gallery
Frequently Asked Questions
How long is installation?
After fabrication and site readiness, installation and commissioning typically take a few weeks—timeline varies with platform size and door configuration.
Do you provide pallet & trolley compatibility?
Yes—flush thresholds, wheel stops, roll-off protection and durable flooring are standard options.
Is there an outdoor option?
Yes—weather package with IP-rated devices, drainage and anti-corrosion finishes.
