Outdoor Lifts for Facades, Courtyards & Freestanding Shafts
Corrosion-resistant materials, IP-rated devices, sun/rain protection and drainage—engineered in the UAE for reliable outdoor operation. Free site visit & quotation across all Emirates.
What Are External Elevators?
External (outdoor) elevators are installed on building facades or freestanding shafts to provide barrier-free vertical transport without altering interior layouts. Systems include corrosion-resistant finishes, IP-rated components, sun/rain protection and drainage to suit UAE climate conditions.
Key Characteristics
Weather Package
IP-rated devices, rain canopies, drip edges, drainage and anti-condensation details.
Corrosion Resistance
SS 316/304, marine-grade coatings and UV-stable gaskets for outdoor durability.
Sun Control & Comfort
Tint/solar films, ventilated enclosures and thermal breaks for cooler cabins.
Engineered Structure
Freestanding steel shafts or facade tie-backs; wind load and movement joints considered.
Drive Options
MRL gearless traction for efficiency; hydraulic for short travel or heavy starts.
Common Uses
- Villa and building facades where indoor space is limited
- Malls, hotels and mixed-use developments (atrium/external bays)
- Hospitals and public buildings for accessibility upgrades
- Beachfront/marine environments with enhanced corrosion resistance
Technical Specifications
Capacity
320–1600 kg (higher on request).
Cabin Sizes
From 1.1 × 1.4 m; custom sizes for wheelchairs per EN 81-70.
Travel Height
Up to ~45 m (project dependent).
Speed
0.50–1.00 m/s (traffic/comfort tuned).
Control
PLC/microprocessor with VFD; remote monitoring optional.
Power
3-phase 380/415/440 V, 50 Hz; ARD battery pack for rescue.
Doors
Glass/SS with weather seals; centre-opening or telescopic.
Weather Proofing
IP-rated devices, heaters where needed, UV-stable sealants and drain pans.
Compliance
EN 81-20/50; option EN 81-70 accessibility.
Detailed Specification Table
| Rated Load | 320, 450, 630, 800, 1000, 1275, 1600 kg |
|---|---|
| Cabin (WxD) | From 1100 × 1400 mm (custom per site and EN 81-70 layouts) |
| Door Opening | 800–1100 mm, centre-opening or telescopic; weather seals & drains |
| Stops / Travel | 2–16 stops / up to ~45 m |
| Drive | MRL gearless traction; hydraulic for short travel |
| Control | PLC/microprocessor with VFD; remote diagnostics optional |
| Structure | Freestanding steel shaft with cladding, or facade-mounted ties |
| Weather Package | IP-rated devices, canopies, drip edges, heaters, UV-stable gaskets |
| Finishes | SS 316/304, powder-coated steel, laminated/low-iron glass options |
| Power Supply | 3-phase 380/415/440 V, 50 Hz; dedicated feeder with earthing |
| Standards | EN 81-20/50; option EN 81-70. Test certificates provided. |
Final dimensions, tie locations and electrical ratings are confirmed after site survey and approved GA drawings.
Options & Upgrades
Freestanding Shaft
Self-supporting steel shaft with glass/aluminium/composite cladding.
Solar/Tint Package
IR-reducing films, frit patterns and sunshades for comfort.
Remote Monitoring
IoT telemetry, alerts and service dashboards.
Accessibility Pack
EN 81-70 features: braille buttons, handrails, announcements.
Cladding & Finishes
Low-iron glass, SS 316, powder-coat colours and architectural trims.
Installation Process
Site Survey
Facade study, tie-back points, wind exposure and drainage routes.
Design & Approval
GA drawings, shaft/cladding details, door layouts and anchors.
Fabrication & FAT
Factory build and tests; FAT report supplied.
Erection & Cladding
Steel shaft erection, cladding/glazing, ties and equipment.
Testing & Commissioning
Ride tuning, safety checks, weather tests and handover docs.
Training
Operator training and maintenance briefing.
Comprehensive Elevator Services
Custom Design
Cabin, shaft and cladding tailored to your facade and use case.
Installation
Structural, mechanical & electrical works with QA protocols.
Maintenance & AMC
Preventive plans, spares and 24/7 breakdown support.
Modernization
Upgrade older lifts with outdoor packages and controls.
Our Service Process
- Consultation: Facade location, exposure, accessibility and budget.
- Design: GA drawings, shaft/cladding details, door layouts and MEP interfaces.
- Execution: Fabrication, erection, installation and commissioning.
- Aftercare: Training, AMC, remote support and audits.
Civil Works & Deliverables
By Client / Builder
- Foundation/tie zones, pit & headroom as per GA drawing
- Dedicated power feeder, earthing and lighting
- Cladding interface, rainwater drainage and access scaffolding
- Finishes and waterproofing around penetrations
By Gulf Tech Elevators
- GA drawings, anchor/tie details and structural inputs
- Steel shaft (if selected), elevator supply and cladding coordination
- Installation, testing and commissioning
- O&M manuals, training and handover certificates
Request Your External Elevator Quotation
Free site assessment in Dubai, Abu Dhabi, Sharjah, Ajman, RAK, UAQ, Fujairah and Al Ain. Quick lead times with local UAE manufacturing.
Quick Quote
Service Areas
We serve all UAE Emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Umm Al Quwain, and Fujairah.

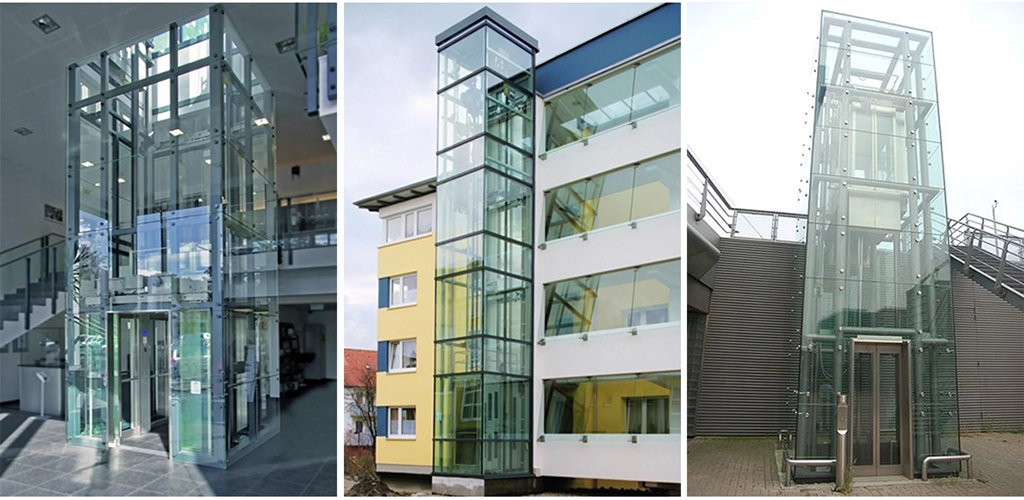

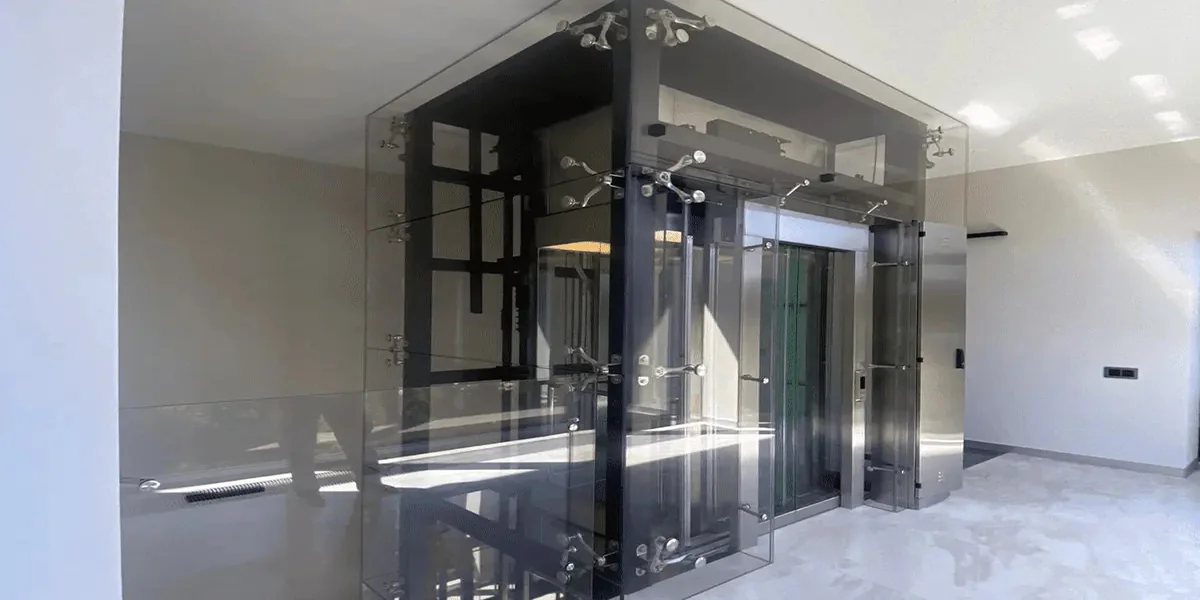

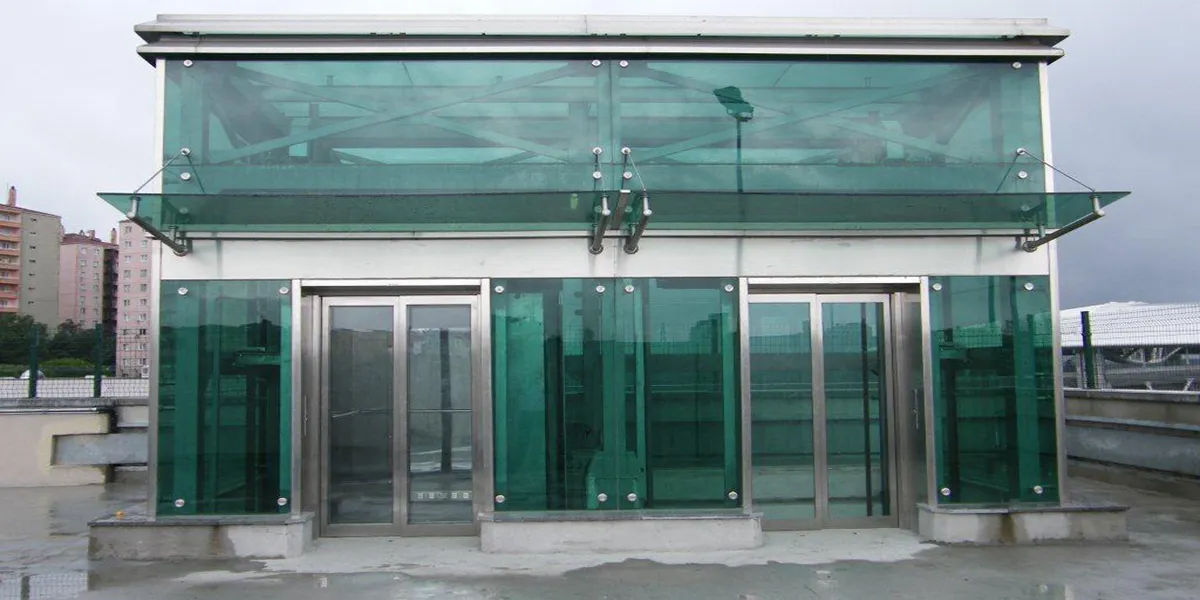

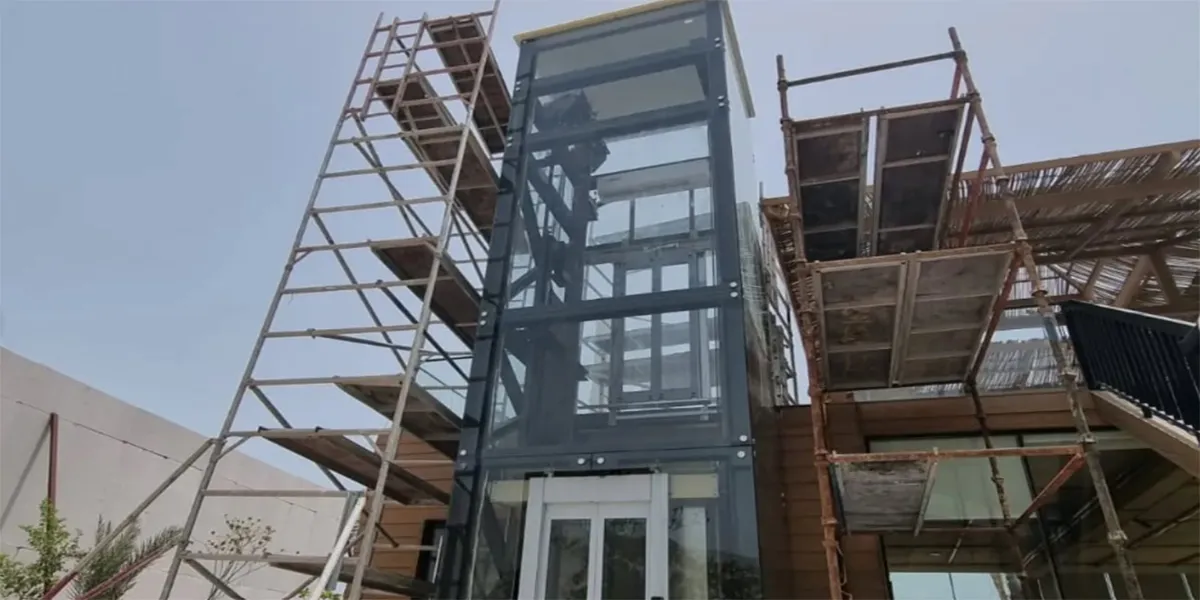

Project Gallery
Frequently Asked Questions
How long is installation?
After fabrication and site readiness, installation and commissioning typically take a few weeks—timeline varies with shaft/cladding scope.
Do you handle structural and cladding engineering?
Yes—structural inputs, tie details and cladding coordination are included with our GA package.
Is maintenance different from indoor lifts?
Outdoor packages include periodic seal, drain and finish checks in addition to standard AMC.
