Design, Supply & Commissioning for New Elevators
From site survey and GA drawings to erection, wiring and testing—full-scope installation for residential, commercial and industrial buildings with EN 81 compliance. Free site visit & quotation across all Emirates.
What’s Included in Elevator Installation?
Complete turnkey delivery—survey, design, supply, erection, wiring, testing & commissioning (T&C)—for traction and hydraulic elevators. We coordinate structure, power and interfaces to deliver a safe, smooth ride that meets EN 81 standards.
Why Choose Gulf Tech
Engineered Drawings
GA, loads, pit/headroom, and power schedules for approval.
Quality Erection
Rail alignment, machine/frame setting and door installation with QA checks.
Testing & Commissioning
Ride tuning, safety chain validation and documented test results.
Accessibility Options
EN 81-70 features: handrails, announcements, braille, mirrors and door widths.
IoT & Monitoring
Remote alerts, logs and preventive insights (optional).
Installation Scope
Survey & Design
Site survey, shaft study, GA drawings, loads and electrical schedule.
Supply
Machine, controller, rails, car frame/cabin, counterweight, doors and fixtures.
Erection
Rail installation, machine/frame mounting, doors and sills, wiring & harnessing.
Safety
Light curtains, overspeed governor, buffers review and ARD rescue pack.
Controls
PLC/microprocessor with VVVF, signals, COP/LOP and call logic setup.
Documentation
Method statements, test sheets, certificates and O&M manuals.
Installation Snapshot
| Types | Passenger, panoramic, hospital/bed, cargo/goods, villa/home, external |
|---|---|
| Drives | MRL gearless/geared traction; hydraulic (short travel/high torque) |
| Doors | Centre-opening/telescopic automatic; vertical bi-parting for cargo; manual options |
| Shaft | Concrete/masonry; steel structure or glass panoramic shafts (optional) |
| Power | 3-phase 380/415/440 V, 50 Hz; ARD emergency rescue pack |
| Compliance | EN 81-20/50; EN 81-70 accessibility options |
| Handover | Test certificates, O&M manuals, training and warranty |
Final pit/headroom, loads and electrical ratings confirmed after site survey and approved GA drawings.
Options & Enhancements
Panoramic Shaft
Steel/glass shaft modules with tie-backs and weather package.
Outdoor Package
IP-rated devices, drainage and anti-corrosion finishes.
Destination Control
Traffic optimization for multi-car groups.
Energy Package
LED lighting, standby modes and optional regenerative drives.
Access Control
Key/card control and restricted operation modes.
Installation Process
Site Survey
Shaft/pit review, approach clearances, power and structure.
Design & Approval
GA drawings, loading data, door layouts and interfaces.
Supply & FAT
Factory build and tests; FAT report provided.
Erection & Wiring
Rails, machine, doors, wiring and device setup.
Testing & Commissioning
Ride tuning, safety tests, documentation and handover.
Training
Operator training and maintenance briefing.
Comprehensive Services
Custom Engineering
BMS, fire and access control interfaces as required.
Installation
QA procedures, alignment tools and certified technicians.
Maintenance & AMC
Post-handover preventive care and 24/7 support.
Modernization
Future upgrades for doors, controls and energy efficiency.
Responsibilities & Deliverables
By Client / Builder
- Pit/headroom and shaft readiness as per GA
- Power feeder, earthing and shaft lighting
- Openings, approach clearances and finishes
- Access, permits and working hours coordination
By Gulf Tech Elevators
- GA drawings, loads and interface details
- Supply, erection, wiring and device setup
- Testing & commissioning with certificates
- O&M manuals, training and handover
Service Areas
We serve all UAE Emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Umm Al Quwain, and Fujairah.

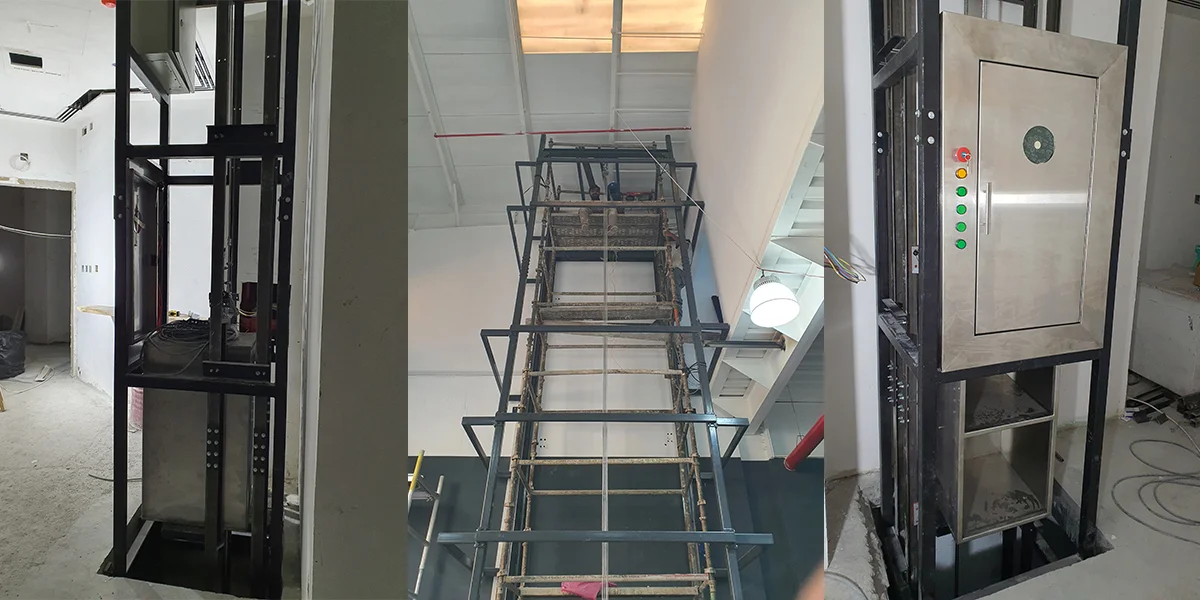

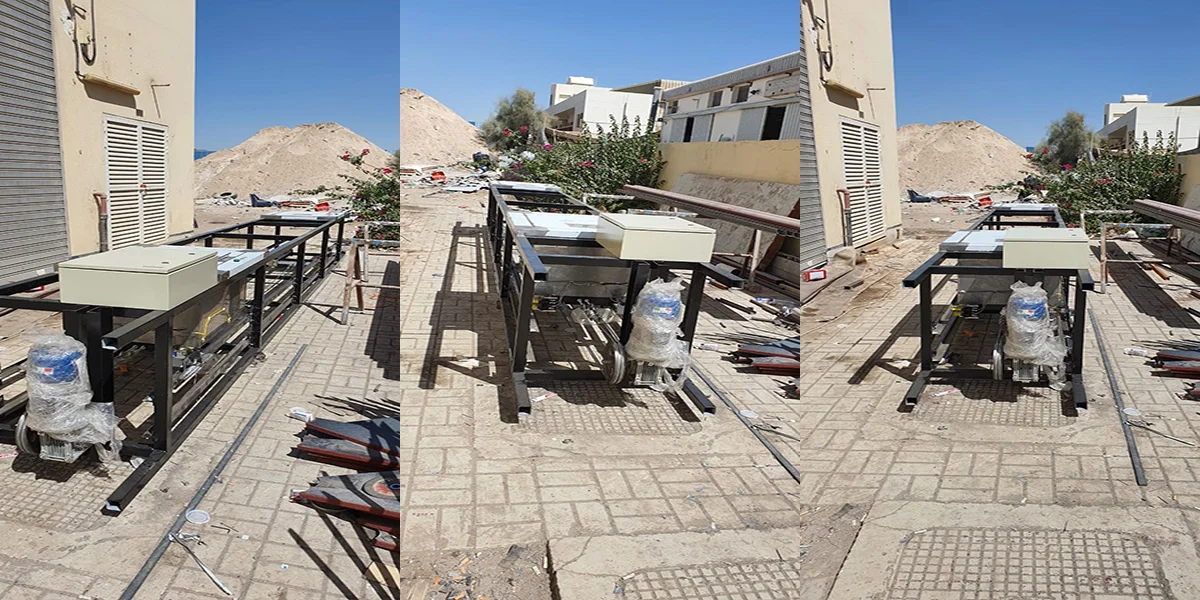

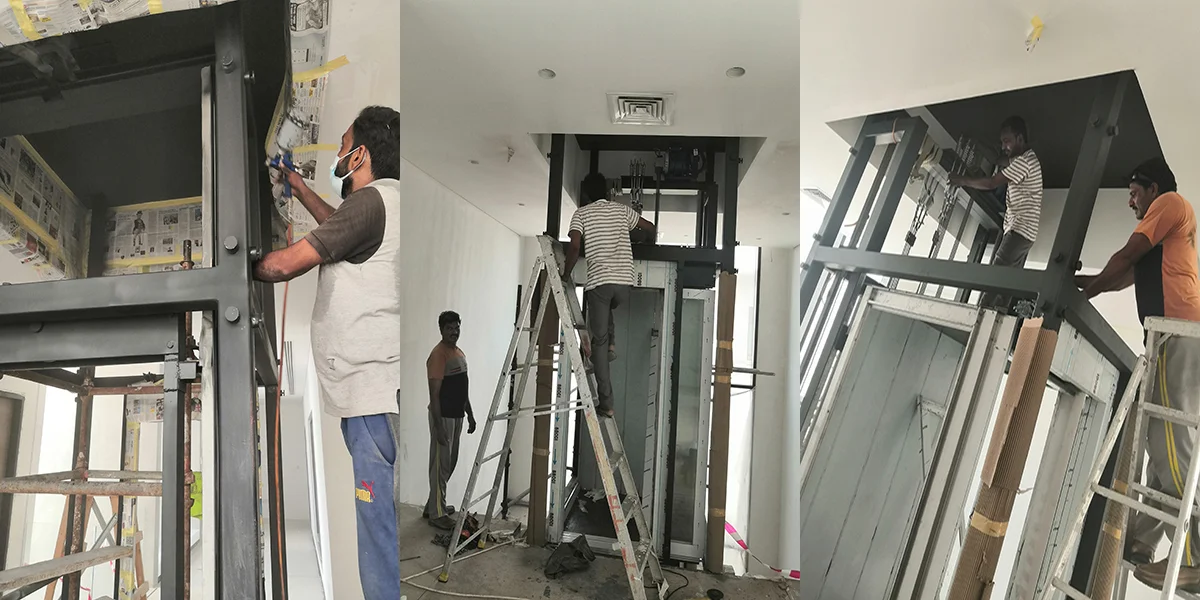

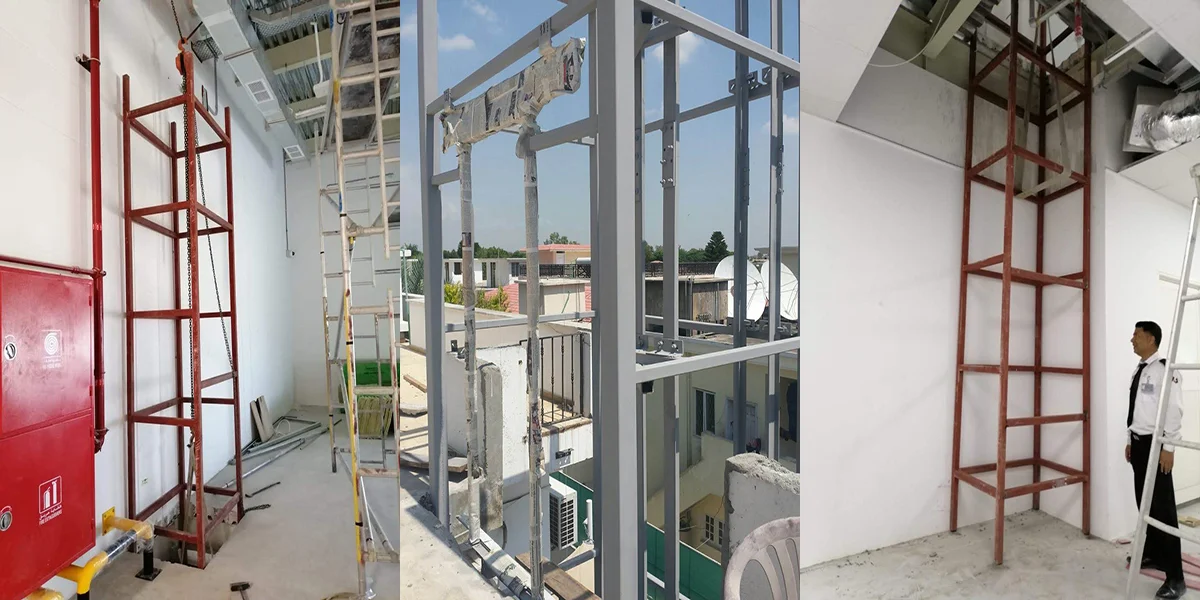

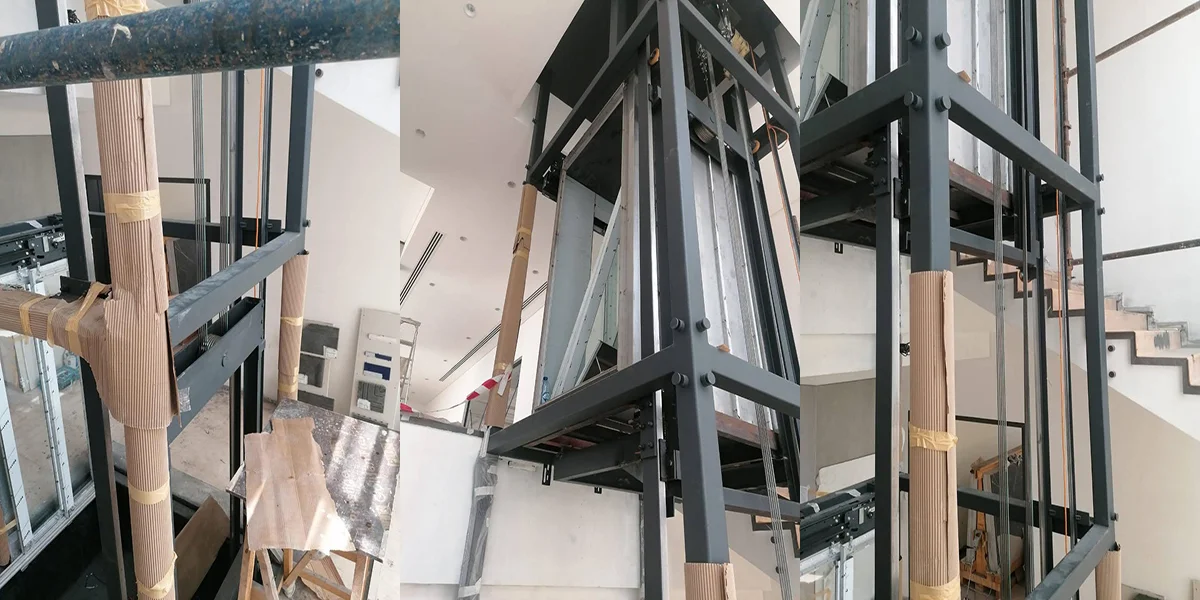

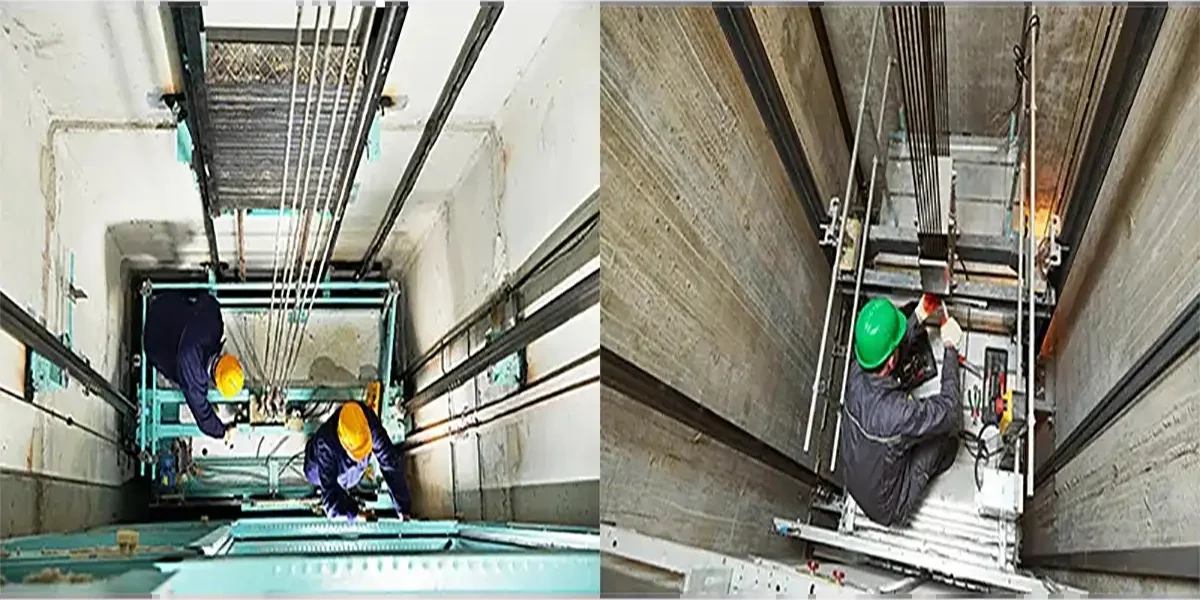

Project Gallery
Frequently Asked Questions
Can you install in an existing building?
Yes—steel structure shafts and MRL configurations reduce civil impact.
Do you offer external/outdoor lifts?
Yes—with weather package, drainage and corrosion-resistant finishes.
What documents do we receive?
GA drawings, test certificates, O&M manuals and training records.
