Service Lifts for Kitchens, Villas, Hospitals & Hotels
50–300 kg capacities, stainless steel cabins, guillotine or hinged doors and reliable controls—engineered in the UAE for quick, hygienic goods transfer. Free site visit & quotation across all Emirates.
What Are Dumbwaiter Elevators?
Dumbwaiter elevators (service lifts) carry meals, dishes, documents and small goods between floors. With compact shafts, stainless interiors and interlocked doors, they deliver fast, hygienic transfers for kitchens, villas, clinics and housekeeping.
Key Characteristics
Hygienic Stainless Cabin
SS 304 interior, removable shelves, easy‑clean corners and LED lighting.
Compact Drive
MRL traction/rope drum with smooth VFD control and precise leveling.
Door Options
Vertical bi-parting (guillotine) or hinged; optional fire-rated shutters.
Pass-Through
Front only or front/rear openings for kitchen service flows.
Smart Control
Call registration, arrival buzzers, load monitoring and maintenance alerts.
Common Uses
- Restaurants, cafés and hotel room service
- Villas and private residences (kitchen–pantry–rooftop)
- Hospitals/clinics (documents, samples, light supplies)
- Offices/libraries (files, books) and retail storerooms
Technical Specifications
Capacity
50–300 kg.
Car Size
From 0.5 × 0.5 m; custom up to ~1.0 × 1.0 m.
Travel Height
Up to ~30 m (site dependent).
Speed
0.15–0.40 m/s.
Control
Microprocessor/PLC with VFD; arrival buzzers and indicators.
Power
1‑phase or 3‑phase (per model); ARD emergency rescue optional.
Doors
Vertical bi-parting or hinged; fire-rated options on request.
Safety
Door interlocks, overload, limit switches and roll-back protection.
Compliance
EN 81‑3 (Service lifts).
Detailed Specification Table
| Rated Load | 50, 100, 150, 200, 250, 300 kg |
|---|---|
| Car (W × D × H) | From 500 × 500 × 600 mm; custom up to ~1000 × 1000 × 1200 mm |
| Door Opening | Bi-parting 500–900 mm; hinged 400–900 mm |
| Stops / Travel | 2–12 stops / up to ~30 m |
| Drive | MRL traction / rope drum with VFD |
| Control | Microprocessor/PLC; call/arrival indicators, buzzer, load monitor |
| Interior | SS 304, removable shelves, LED light, optional heat-resistant liner |
| Openings | Front only or front/rear pass-through |
| Power Supply | 230 V 1‑phase or 380/415 V 3‑phase, 50 Hz |
| Standards | EN 81‑3 (Service lifts). Certificates at handover. |
Final shaft sizes, counter openings and electrical ratings are confirmed after site survey and approved GA drawings.
Options & Upgrades
Fire-Rated Package
Fire-rated shutters/doors and fascias where required.
Pass-Through Layout
Front/rear openings to streamline kitchen flow.
Hot Food Liner
Heat-resistant liner, insulation and drip tray options.
Service Alerts
Arrival chimes, traffic lights and message displays.
Finishes
Custom fascias, trims and counter heights to match interiors.
Installation Process
Site Survey
Counter height, opening direction and shaft path review.
Design & Approval
GA drawings, opening sizes, fascia details and electrical points.
Fabrication & FAT
Factory build & tests; FAT report supplied.
Installation
Guide rails, machine, doors/shutters and controls.
Testing & Commissioning
Load tests, safety checks, tuning and documentation.
Training
Operator guidance and maintenance briefing.
Comprehensive Elevator Services
Custom Design
Car sizes, doors and pass-through logic tailored to your workflow.
Installation
Clean, fast installation with minimal downtime.
Maintenance & AMC
Preventive plans, spares and 24/7 breakdown support.
Modernization
Upgrades for doors, controls and interiors.
Our Service Process
- Consultation: Goods type, counter height, door style and pass-through needs.
- Design: GA drawings, fascia/opening sizes, electrical & control logic.
- Execution: Fabrication, installation and commissioning.
- Aftercare: Training, AMC and remote support options.
Civil Works & Deliverables
By Client / Builder
- Shaft path/openings and counter height per GA
- Power feeder, earthing and lighting at machine area
- Finishes around landing fascias and access panels
- Fire/life-safety provisions if fire-rated package selected
By Gulf Tech Elevators
- GA drawings, fascia details and interface inputs
- Elevator supply, installation, testing & commissioning
- O&M manuals, training and handover certificates
- AMC proposals and spare parts support
Request Your Dumbwaiter Quotation
Free site assessment in Dubai, Abu Dhabi, Sharjah, Ajman, RAK, UAQ, Fujairah and Al Ain. Quick lead times with local UAE manufacturing.
Quick Quote
Service Areas
We serve all UAE Emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Umm Al Quwain, and Fujairah.

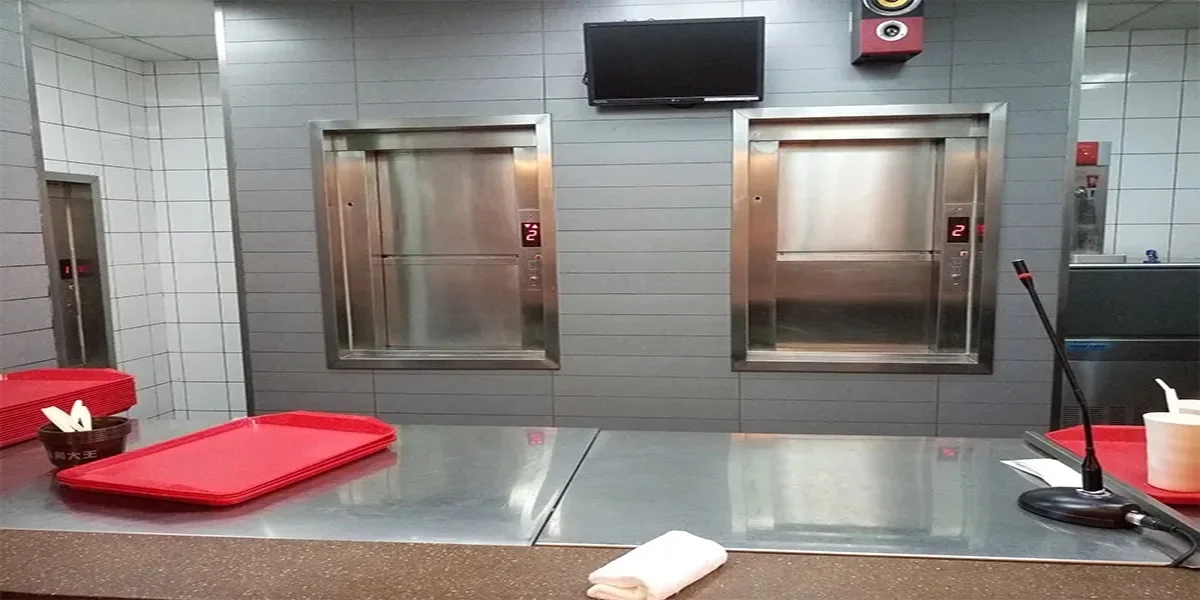

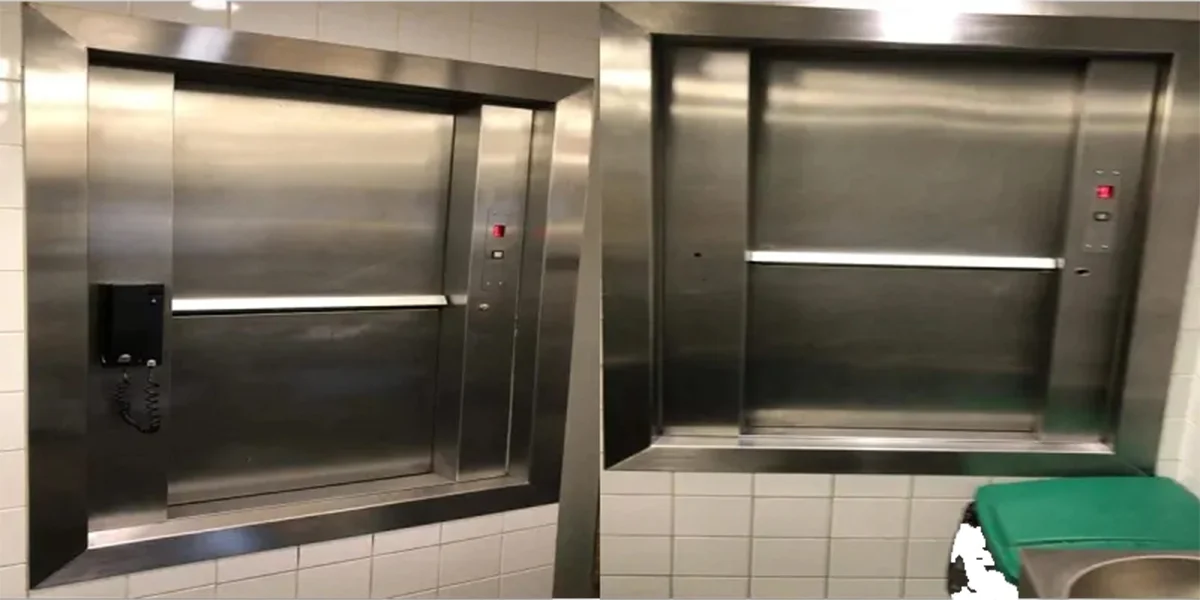

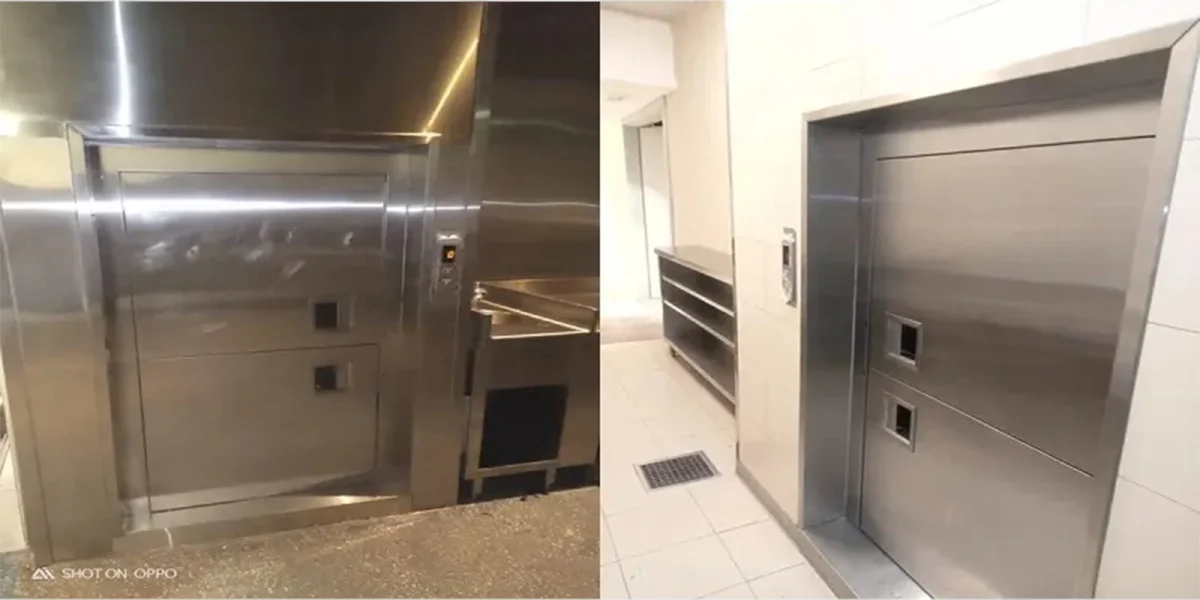

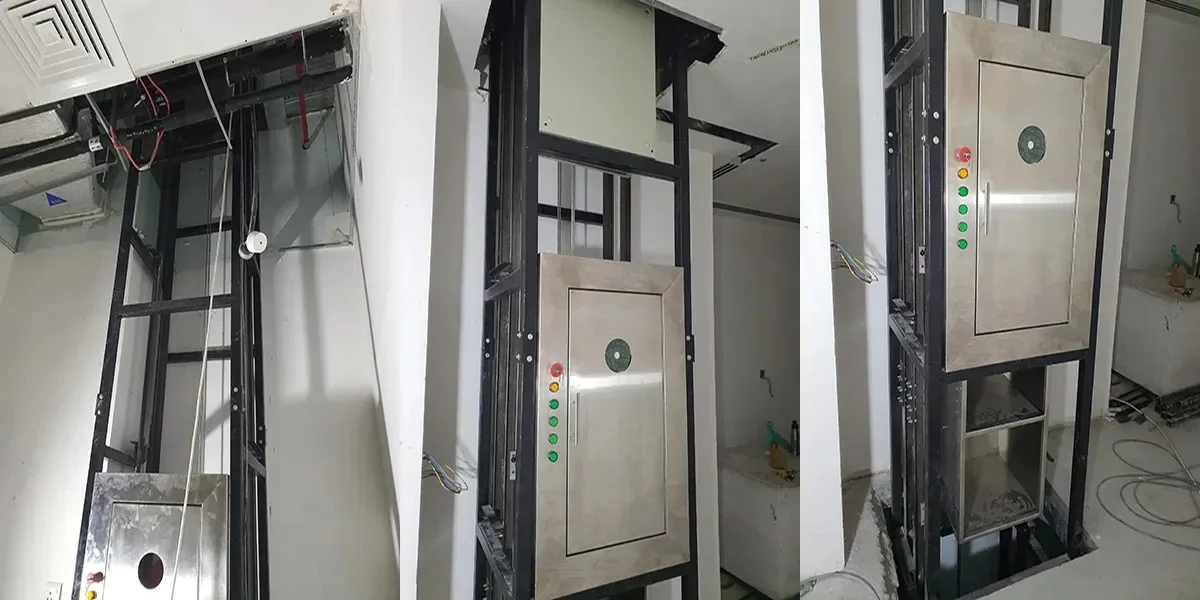

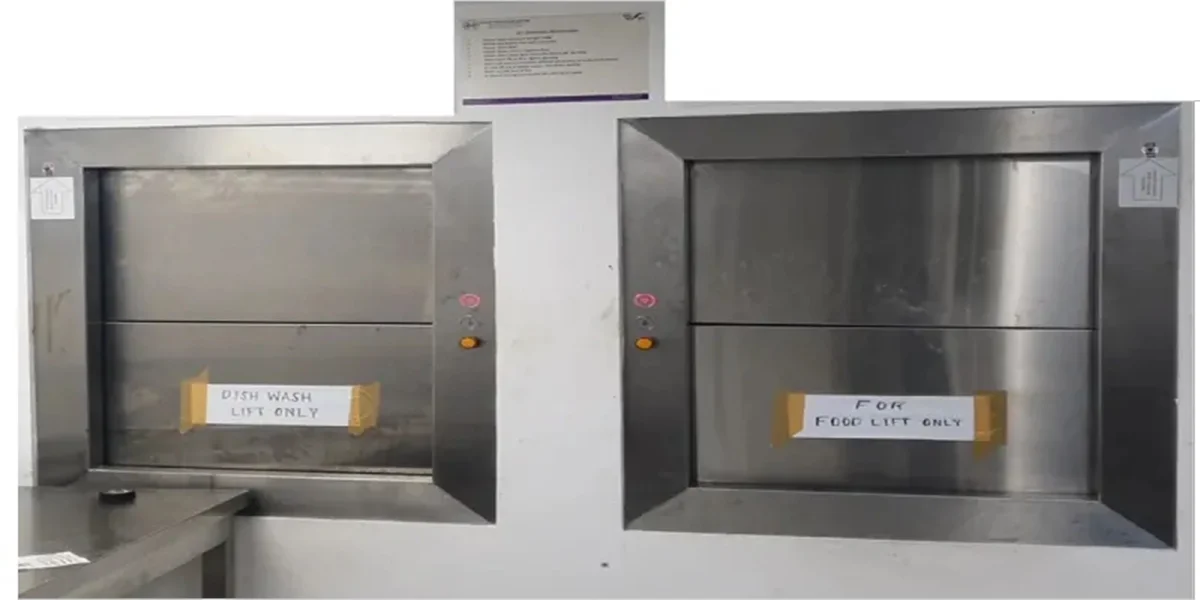

Project Gallery
Frequently Asked Questions
How long is installation?
After fabrication and site readiness, installation and commissioning typically take a short duration—timelines vary with openings and stops.
Can I add pass-through later?
Openings need to be decided at design stage; we can plan front/rear or front-only based on flow.
Is there a fire-rated option?
Yes—fire-rated shutters/doors and fascias are available where required by code.
